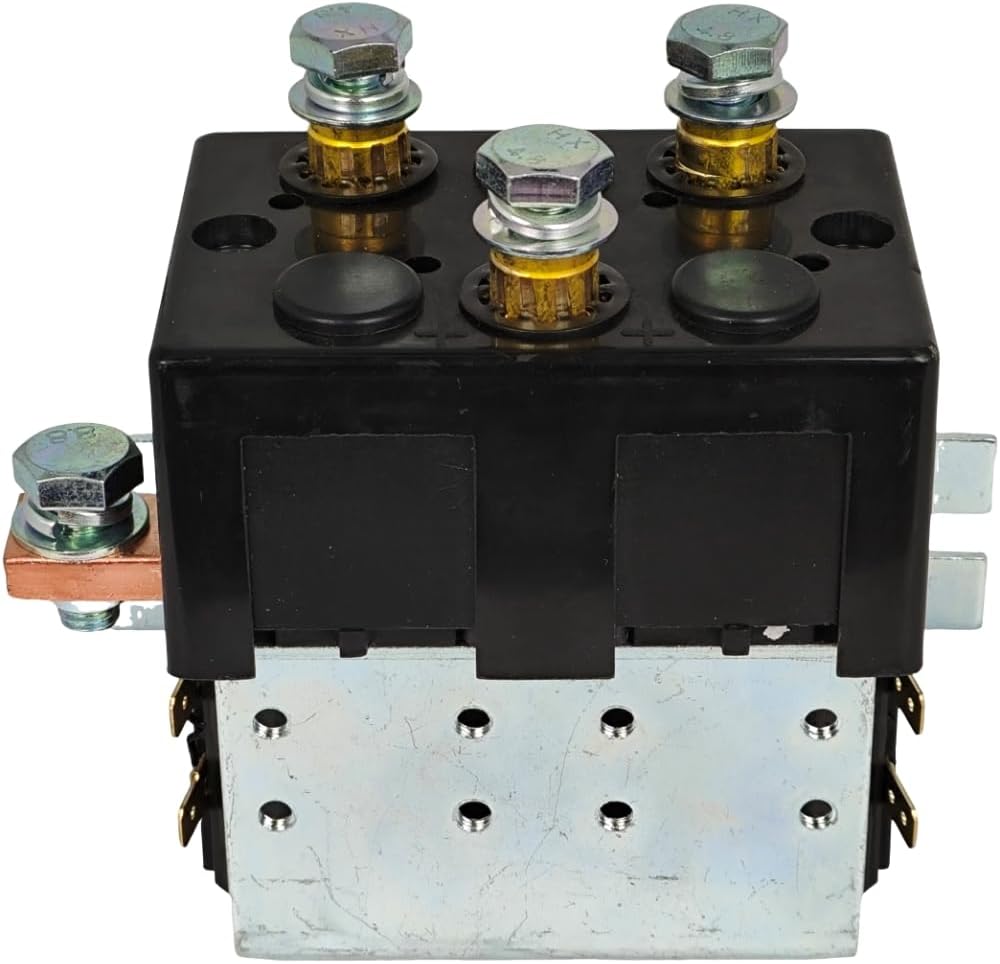

XYZIL DC182 24V 200A Forward Reverse Contactor Solenoid Compatible with Albright DC182-102 DC182-3 Reversing Forklift Truck with Integral Bracket

Model: DC182 Specification: Coil Voltage: 24V Rated Current: 200 Amps Contact Type: Double pole, Changeover Contacts Magnetic Blowouts Coil Power Requirement: 11 to 15W Rated Contact Circuit Voltage: 6 to 80 Volts DC Mechanical Life: 100 thousand operations Electrical Life: 20 thousand operations Terminal Type: 5/16ths inch and 1/4 inch spade connectors for coil The DC182 series of contactors is designed for direct current (DC) loads, especially motors used in applications such as industrial trucks, airport tugs/tractors, and similar equipment. It features dual circuit-breaking main contacts tipped with silver alloy, making them resistant to welding, durable, and highly conductive. The DC182's motor reversing contact circuit contains a built-in safety feature. If both coils are accidentally energized at once, the contact arrangement opens the circuit. This protects the load from potential damage.

• Model: DC182
• Coil Voltage: 24V
• Rated Current: 200 Amps
• The DC182 series of contactors is designed for direct current (DC) loads, especially motors used in applications such as industrial trucks, airport tugs/tractors, and similar equipment.
• It features dual circuit-breaking main contacts tipped with silver alloy, making them resistant to welding, durable, and highly conductive.
• The DC182's motor reversing contact circuit contains a built-in safety feature. If both coils are accidentally energized at once, the contact arrangement opens the circuit. This protects the load from potential damage.
