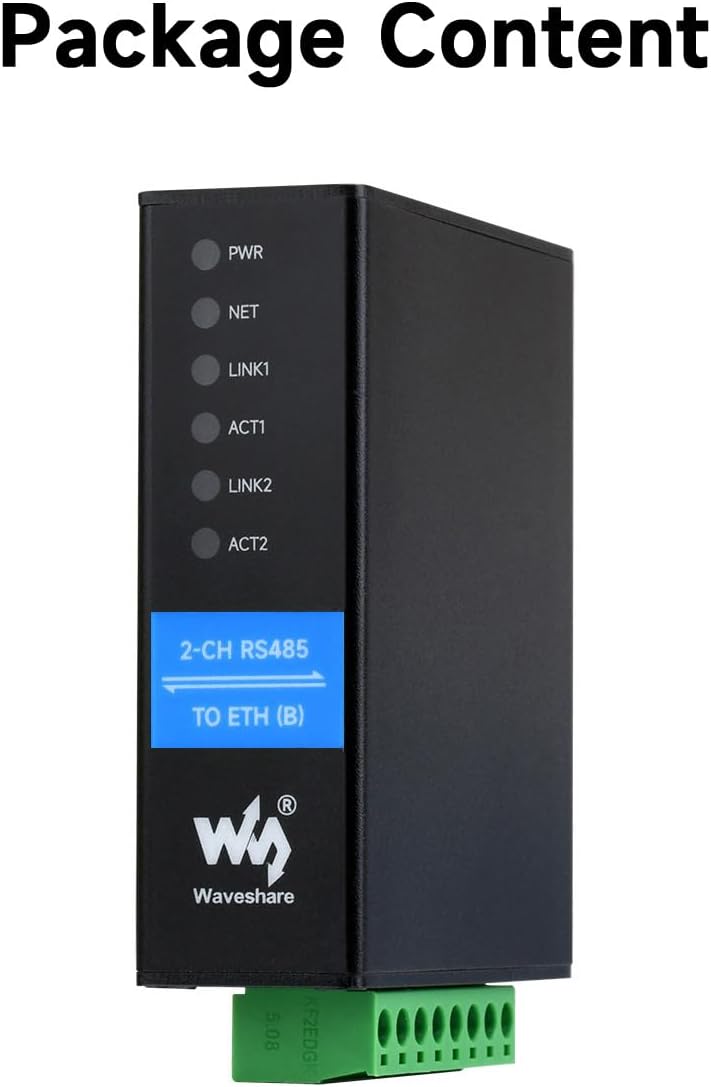

Waveshare 2-Ch RS485 to RJ45 Ethernet Serial Server, Dual Channels RS485 Independent Operation, Rail-Mount Industrial Isolated Serial Module, Common Network Port
$45.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by constructioncleanla.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$45.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by constructioncleanla.com
Free 30-day returns Details
Product details
| Management number | 212250031 | Release Date | 2026/04/06 | List Price | $18.40 | Model Number | 212250031 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

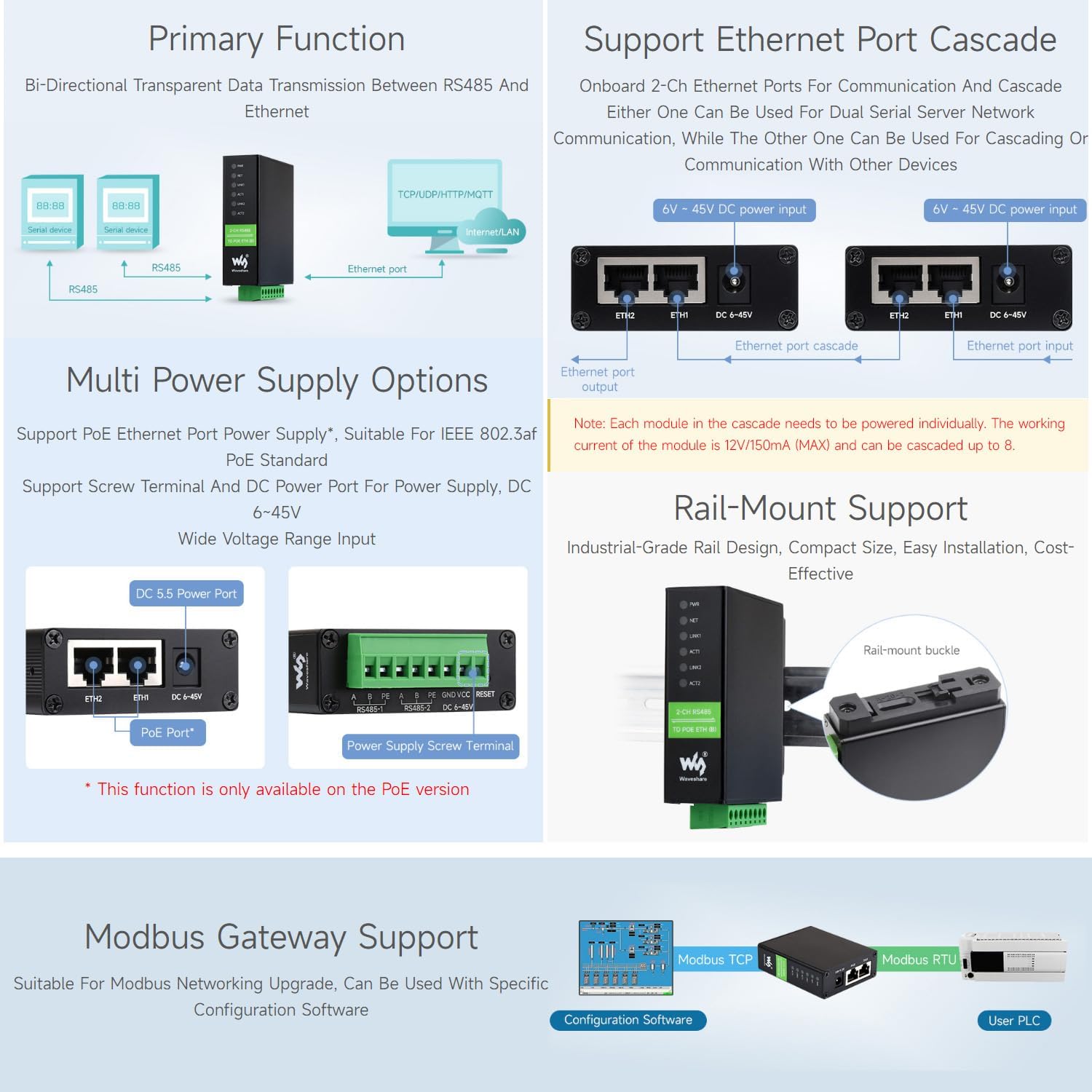

- Common network port. This is a 2-ch RS485 device data acquisitor / IoT gateway designed for the industrial environment.
- Dual RS485 can work simultaneously without interfering with each other.
- It combines multi functions in one, including serial server, Modbus gateway, MQTT gateway, RS485 to JSON, and network switch.
- The module features dual RS485 and dual Ethernet ports (PoE function optional), uses a DC port (outer diameter: 5.5mm, inner diameter: 2.1mm) and screw terminal for power input.
- The case with rail-mount support, is small in size, easy to install, and cost-effective. It is suitable for applications like data acquisition, IoT gateway, safety & security IoT, and intelligent instrument monitoring...
| Brand | waveshare |
|---|---|
| Platform | Web Browser |
| Manufacturer | Waveshare |
| Number of Ethernet Ports | 2 |
| Main Power Connector Type | DC power jack |
