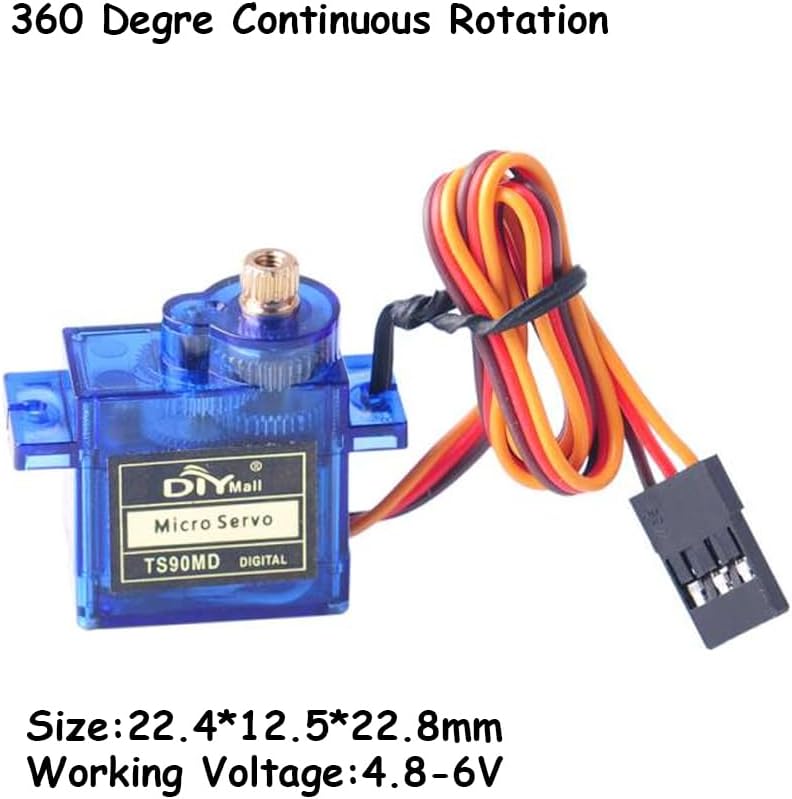

TS90MD 9g Micro Digital Servo Full Metal Gear 360 Degree Continuous Rotation for RC Drones Robotic Arm Smart Car Need PWM 500~2500usec(Pack of 4pcs)
Product details
| Management number | 219627882 | Release Date | 2026/05/03 | List Price | $8.00 | Model Number | 219627882 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Description: Mechanical specifications Size: 22.4 x 12.5 x 22.8mm Mechanism limit angle: 200 ° ± 15 ° Output shaft: 20T, diameter: 4.9mm Gear material: metal Electrical characteristics Working voltage: 4.8V-6V No load speed: 0.11sec/60 ° No-load current: 220mA/6V Locked rotor torque: 2.2Kg-cm/6V Locked rotor current: 800mA ± 10% Static current: 5mA-6mA Control characteristics Control signal: Pulse width modification Control system type: Analog controller Mid point position: 1500usec Pulse width range: 500~2500usec Note: Please use a standard PWM control signal, the period is 20ms, the high level time is 0.5-2.5ms. 270 degrees and 180 degrees can stop at any angle, and the angle can be adjusted. 360 degrees is a continuous rotation, and the angle and speed cannot be controlled. 180 degrees and 270 degrees can control the angle, PWM500-2500 remote control can only have half of the stroke. Package： 1PCS - Servo with accessories
- - Please use a standard PWM control signal, the period is 20ms, the high level time is 0.5-2.5ms.
- - Full metal gears with high wear resistance for a wide range of applications
- - 360 degree continuous rotation, cannot control angle and speed
- - Working voltage: 4.8V-6V，No load speed: 0.11sec/60 °，Locked rotor torque: 2.2Kg-cm/6V
- - You will get 4pcs 360 degree servo
| Model | 360degree |
|---|---|
| Brand Name | Sparkleiot |
| Item Weight | 68 Grams |
| Part Number | SK6240-360 |
| Bearing Type | Roller Bearing |
| Manufacturer | Sparkleiot |
| Material Type | Metal, Plastic |
| Item Type Name | servo |
| Item Dimensions | 0.88 x 0.5 x 0.9 inches |
| Included Components | 1pcs servo + 1set accessories |
| Compatible Lubricant | Grease |
