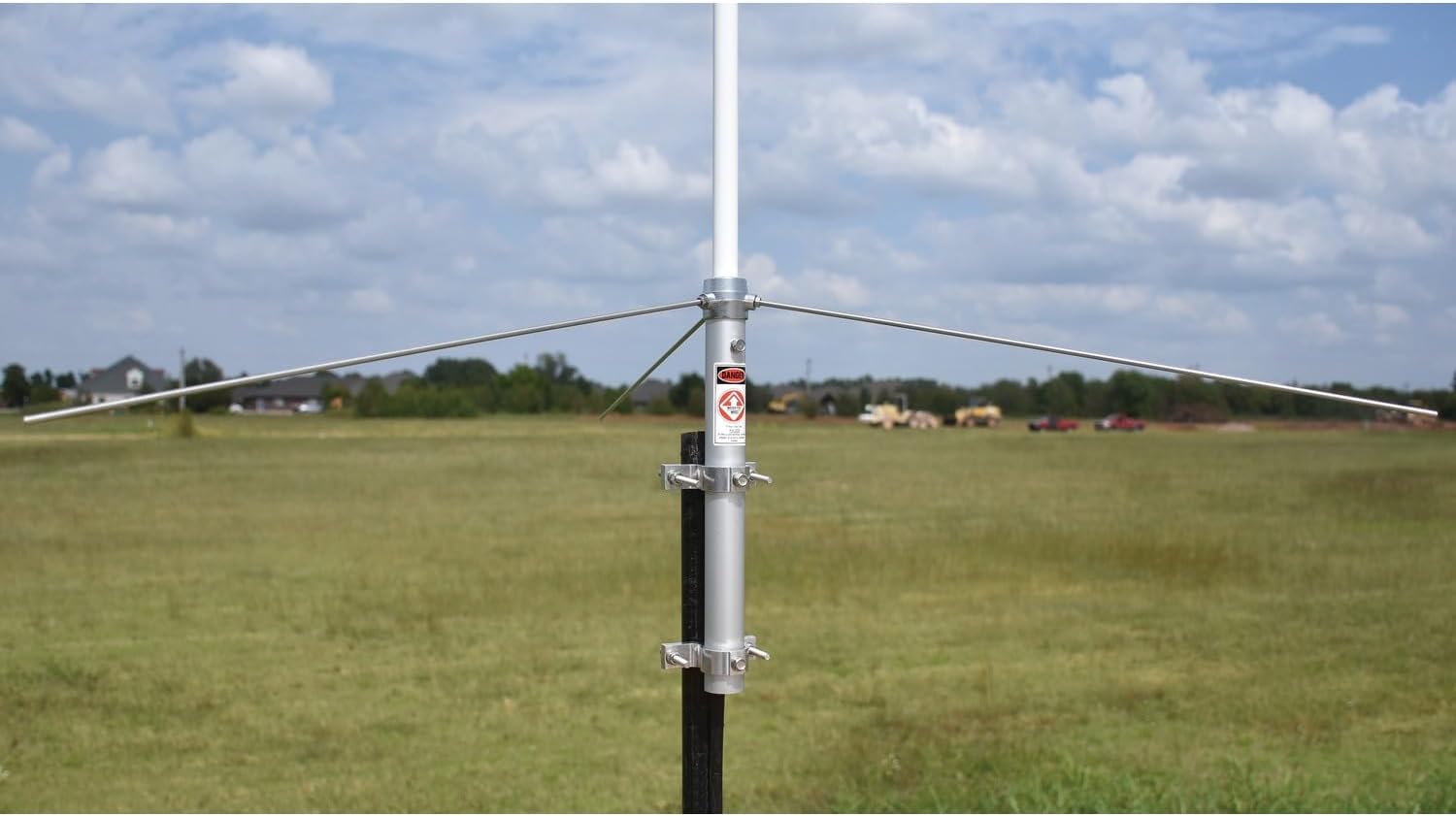

Tram® 200-Watt Dual-Band 2-Section Fiberglass Base Antenna with 50-Ohm UHF SO-239 Connector, 8-Ft. 4-in. Tall (Silver)

Reduce your precipitation static and lower your background noise with the Tram Amateur Dual-Band Antenna. This 8 ft., 2-section antenna features a heavy-duty fiberglass base station, an insulated conductor, a 144 to 148 MHz/440 to 450 MHz frequency range, 6 dBd gain VHF/8 dBd gain UHF, and a power capacity of 200 watts. Accepts mast diameters from 1.81 in. to 2.44 in.. Includes bracket and three 20.5 in. radials.

• 200 watts power rating
• 8 ft. 4 in. tall
• Heavy-duty, 2-section fiberglass construction; max wind speed of 110 MPH
• Special joint design connects fiberglass tubing so sections maintain the same strength as a single-section design
• 144 MHz to 148 MHz; 4 MHz bandwidth; 6 dBd gain
• 430 MHz to 450 MHz; 20 MHz bandwidth; 8 dBd gain
• 5/8 wave 2 elements and 5/8 wave 4 elements; 20-1/2 in radial length
• Radiator and coil are hermetically sealed in fiberglass tubing to assure low SWR in all weather
• DC ground construction allow static dissipation for low noise ratio and maximum lightning protection
