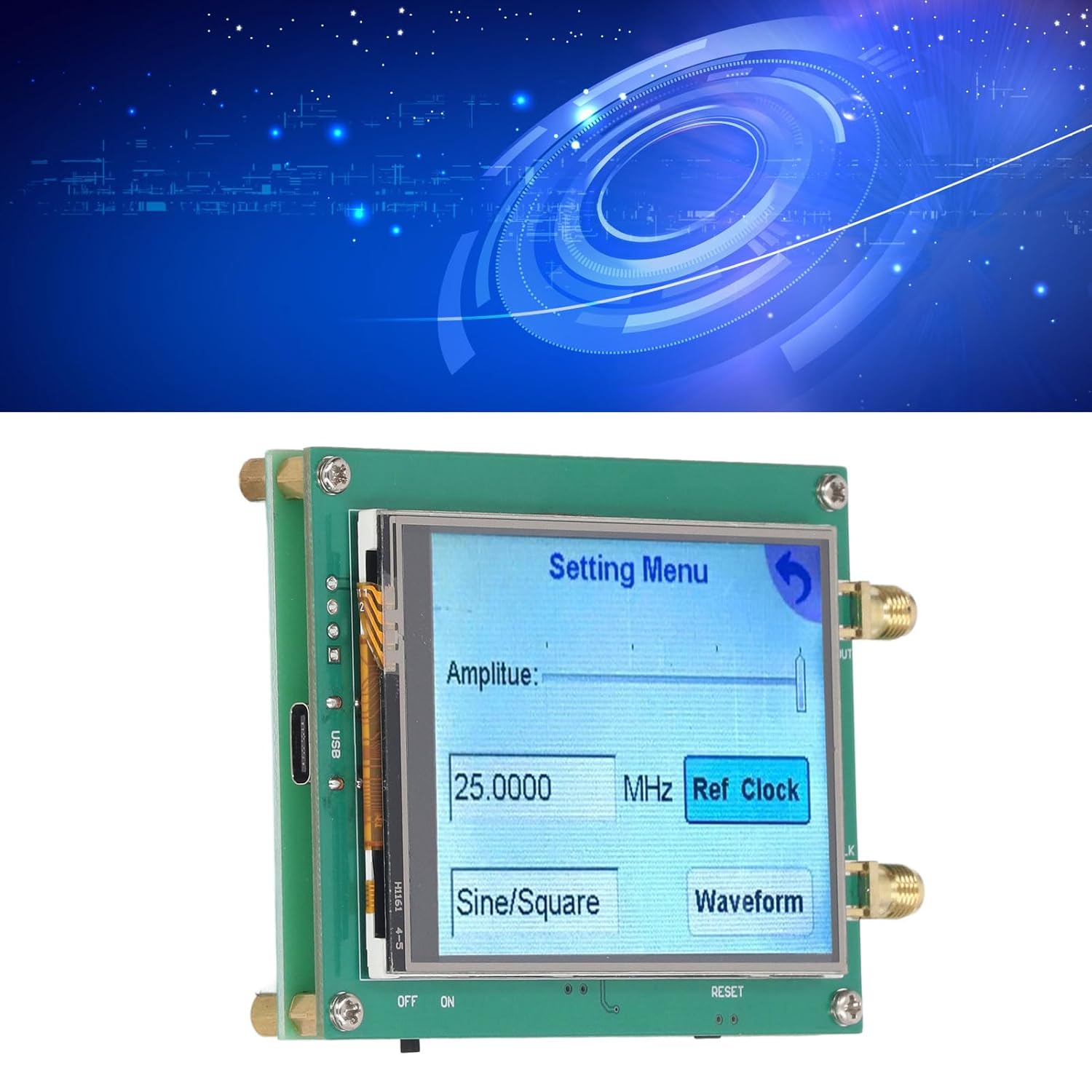

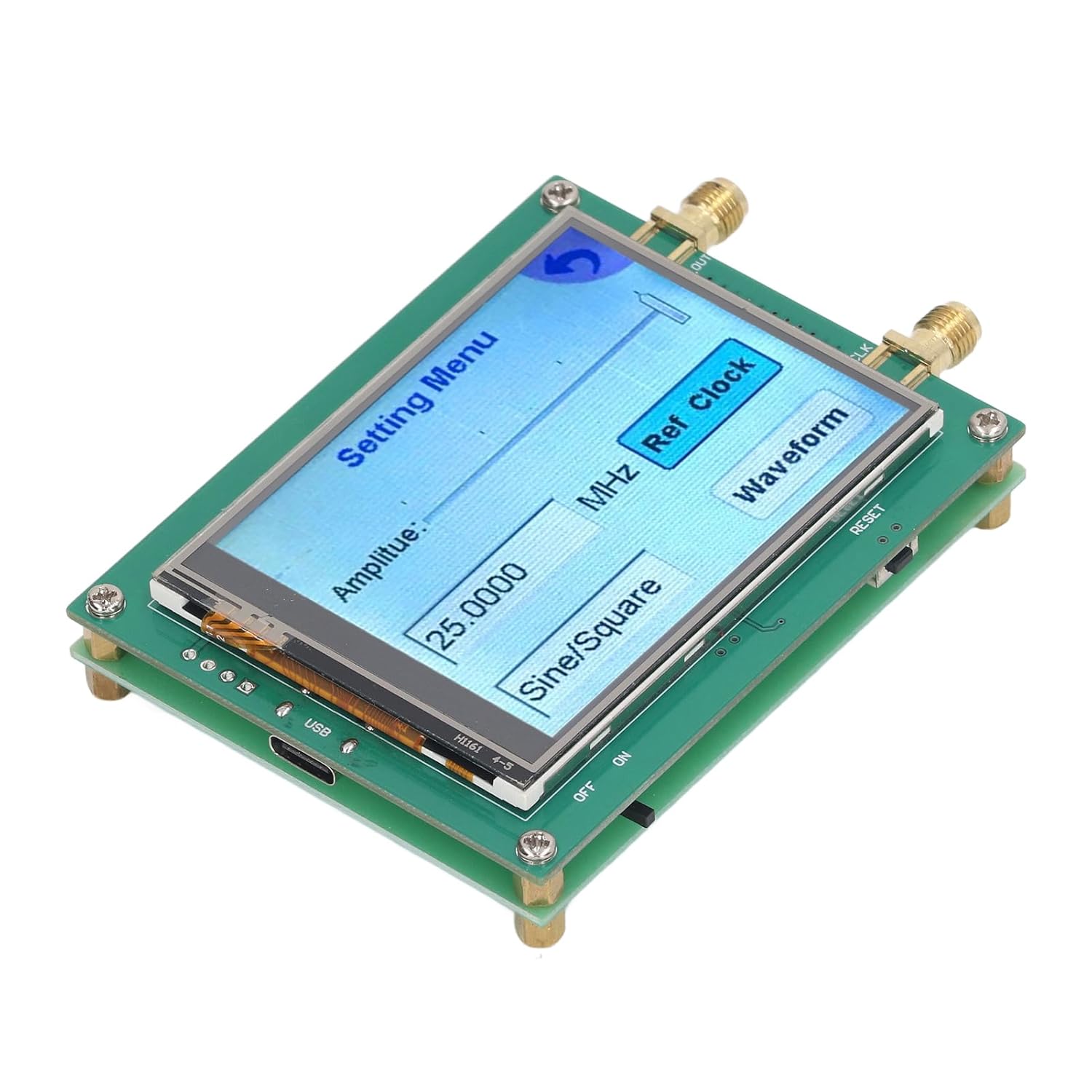

Respicefinem Rf Generator Rf Sweep Dot Frequency Module Radio Pc Meter Counter Control Adf4351 35M 4. 4G (ADF4350 138m‑4.4g)

Item Type: RF GeneratorMaterial: PCBPower Supply And Communication Interface: TYPE C 5V at 0.2ARefer to ADI official evaluation board circuit and layout.Output : 2.2-4.4G Fundamental (Sine ),35m-2.2g Fundamental (Sine )Point frequency sweep full touch control can realize point frequency, sweep frequency.4 Levels of Amplitude Control.Can be connected to an external reference clock.Output Interface: SMA Female ConnectorCan be realized through the PC control, provide PC software, send the data line.Package List：1 x RF Generator1 x Data Cable

• Full Frequency Input & Modes: This RF module supports full frequency input, with point frequency output and optional frequency sweep, offering flexible control for radio and PC meter counter setups. It adapts to diverse applications, making it suitable for various RF control needs with the frequency module.
• 23.5-6000MHz : Equipped with a high performance chip featuring a 23.5MHz to 6000MHz base frequency VCO, it covers extended frequency ranges, ideal for radio systems and meter counter control. The meets demands for versatile RF testing with the RF generator.
• SMA FEM Output Interface: Features an SMA FEM interface that ensures stable connection performance, facilitating transmission in radio and PC control systems. The interface design supports consistent output in various setups with the RF module.
• 4 Amplitude Control: Includes 4 amplitude control settings, allowing precise adjustment of strength to match specific requirements in radio control and counter applications. This control enhances versatility for fine-tuning with the frequency generator.
• & Heat : Made with excellent materials, the module is high temperature , ensuring a service life even in continuous . Its durability makes it for -term use in radio and control systems with the RF sweep module.
