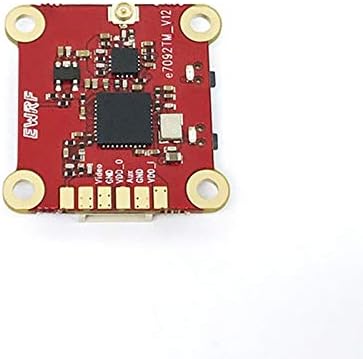

Replacement Part For TX805 5.8G 40CH 25/200/600/800MW FPV Transmitter VTX LED Display Support OSD/Pitmode/Smarto - (Color: Red)

Item Description:User Guide1.LED indication:The red LED indicates the state of working mode or the item when setting the VTX(flashing 1 time means selecting the channels, flashing 2 times means selecting the bands, flashing 3 times means selecting the power levels).The blue LED indicates the state of Pitmode or the value of item when setting the VTX( e.g. when selecting the channels, 3 times of flashing means channel 3. When selecting the bands, 3 times of flashing means band C.As for the item of power levels,3 times of flashing means at the power level of 500mW)2.Working mode indication:After powering up, the red and blue LEDs will signal the following three items of VTX in turn: channel, band and power level(the flashing times of the red and blue LEDs indicate the item and the value respectively). After that, the LEDs indicate the working modes.Normal: The red and blue LED are on.Pitmode:The red LED is on and blue LED is off.3.Setting:Press and hold the C button until the red LED flash 1 time which means the item of channel selecting, then press the C button can select the channels(blue LED flashing times corresponds to the channel 1-8).Press and hold the C button again,the red LED will flash 2 times which means the item of band selecting, then press the C button can select the band(blue LED flashing times corresponds to the band A-F).Finally, press and hold the C button, save and exit the setting of VTX(This step is essential for setting).Press and hold the P button again,the blue LED will flash which means the item of power level selecting, then Press and hold the P button can select the power(blue LED flashing times corresponds to the power level).Press the button twice will toggle the ON/OFF of Pitmode.4.OSD settingVideo transmitter work well with several other commonly used Betaflight/Cleanflight FCs when using OSD setting.

• Color: Red
• Material: Other
