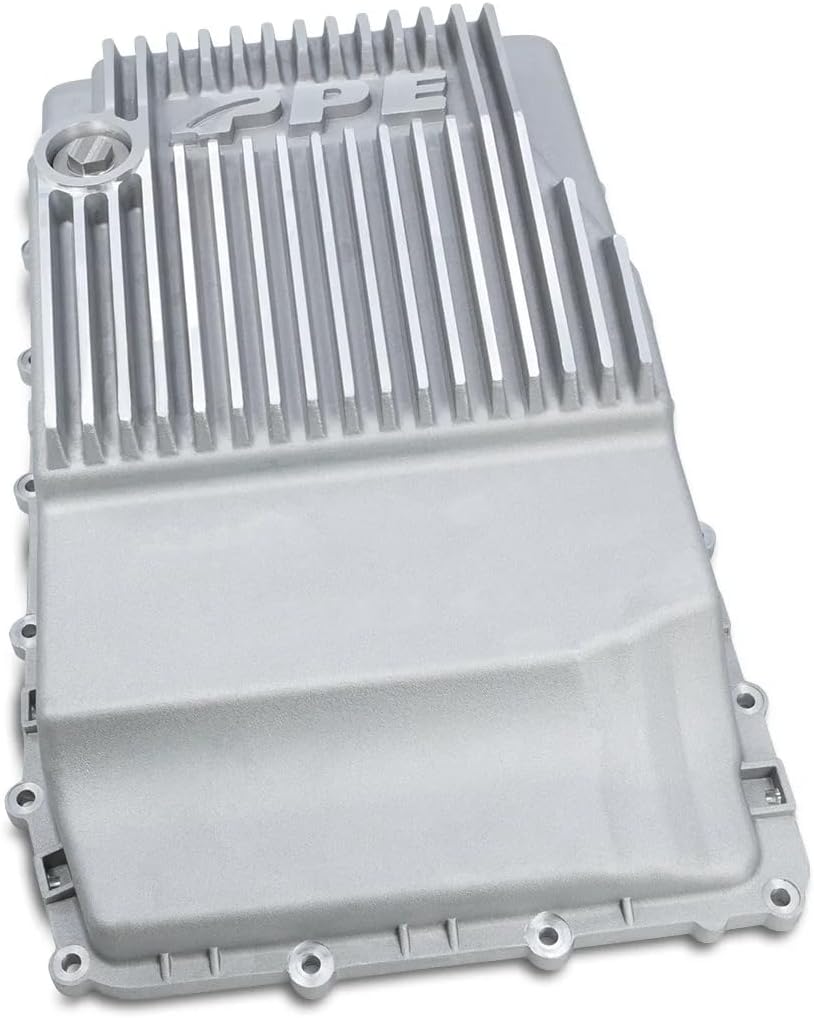

Pacific Performance Engineering PPE Heavy Duty Cast Aluminum Deep Transmission Pan (Brushed) 328053120 Compatible with 2017+ F150 with 10R80 Transmission

Excessive heat can shorten transmission life. As temperatures rise, transmission fluid viscosity decreases, weakening the protective film around gears and bearings, potentially leading to premature wear and failure. Crafted from high-grade A356.0-T6 aluminum alloy, the PPE transmission pan provides an extra 1.75 quarts of fluid capacity, ensuring sustained heat management and performance. Deep external cooling fins maximize heat-wicking surface area, effectively dissipating heat to keep your transmission cool under high pressure. These fins also bolster the pan's bottom strength and impact resistance. Built-in baffles at the pan's base enhance heat transfer by increasing fluid contact with cast-aluminum surfaces, reducing fluid sloshing for consistent pickup and stable performance. Alongside the longitudinal external fins, they create a rigid, cross-bracing structure that distributes loads better and boosts impact resistance. The drain plug features a potent, high-temperature-rated neodymium magnet that traps ferrous metal particles, offering additional transmission protection. Keep your 10-speed transmission running longer, healthier, and cooler with PPE.

• High-grade A356.0-T6 aluminum alloy construction
• Meticulously cast using permanent steel molds for precision and consistency
• Boosts fluid capacity by 1.75 quarts for enhanced heat management
• Tall, 3/4-inch external fins for improved heat dissipation and impact resistance
• Deep, 3/4-inch internal baffles for better heat absorption and fluid stability
• Integrated Cross-Bracing structure for superior strength and rigidity
• Cast-in gussets for reinforced transmission housing flange support
• 304 Stainless steel drain plug with high-temperature neodymium magnet and Viton O-ring
• 1/8-inch NPT port with pre-installed NPT plug for easy installation
• Designed to work with OEM gasket and filter
