Mobile Hydraulic Oil Cooler, 0-120 GPM, 50HP, with Dual 12V Fans With or Without Bypass (2 Bar (29 psi) Bypass)
Product details
| Management number | 215319256 | Release Date | 2026/04/12 | List Price | $560.56 | Model Number | 215319256 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

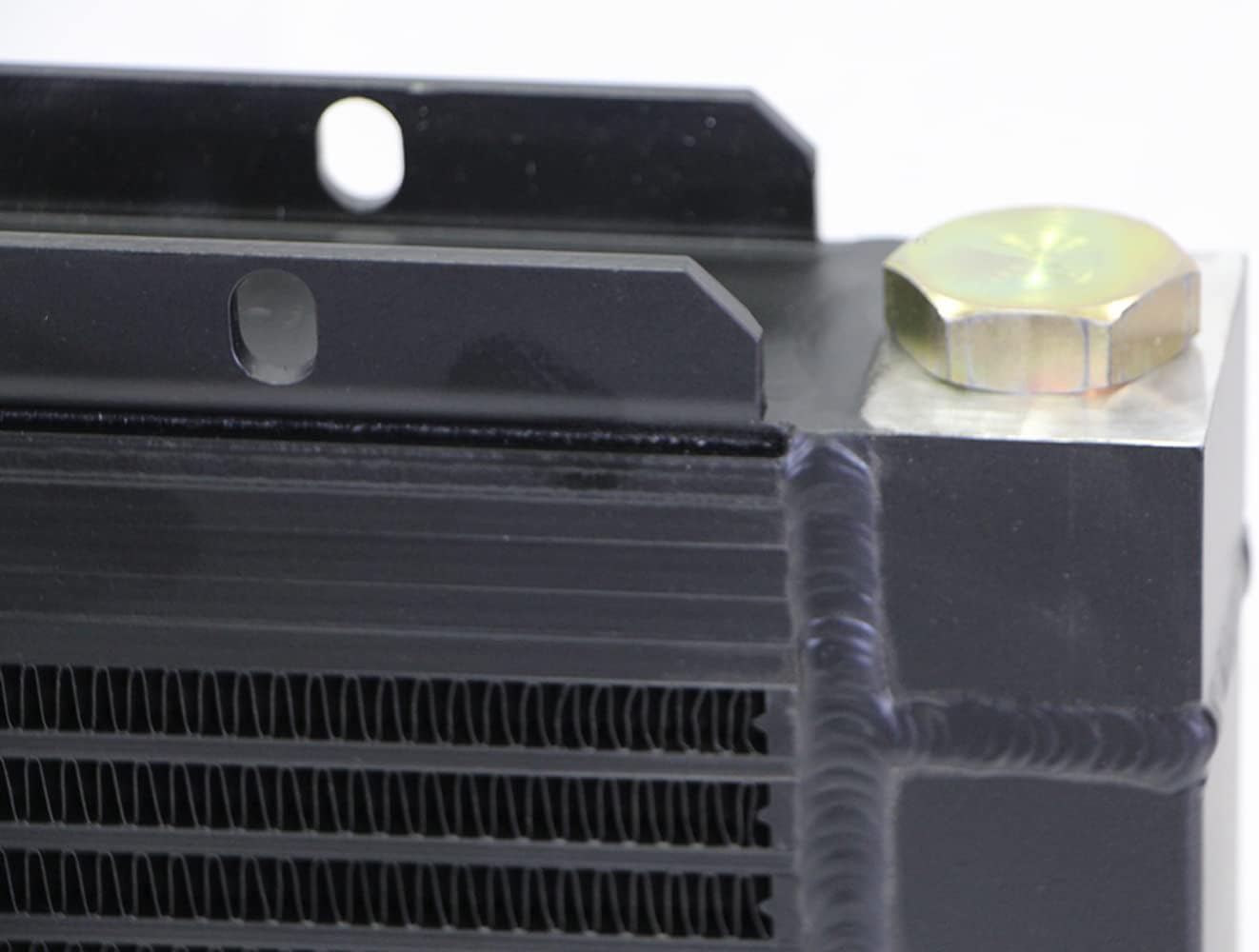

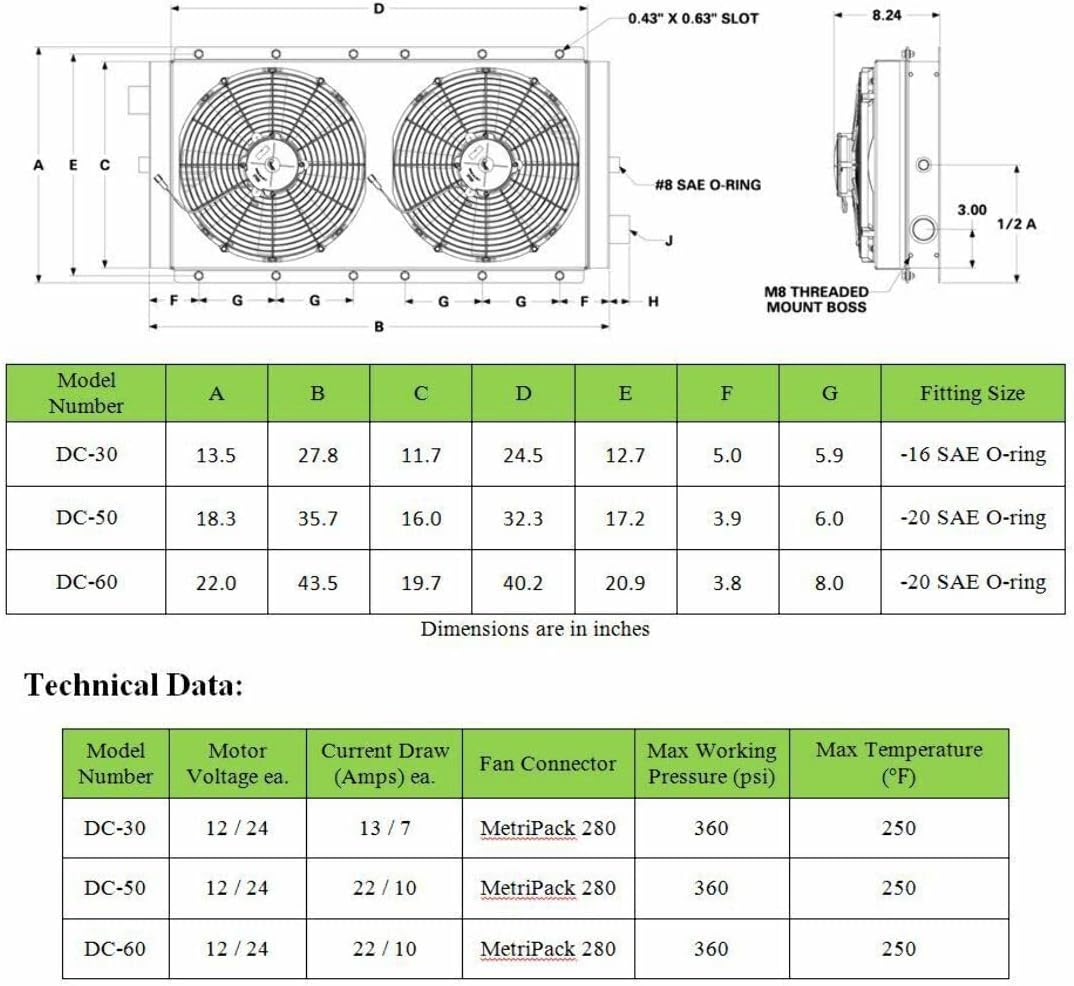

Heavy Duty Aluminum Bar and Plate Hydraulic Oil Cooler w/ 12V Fan & Shroud DC-50 INSTALLATION SHOULD BE COMPLETED BY A TRAINED PROFESSIONAL! Assembly needs to be installed on the Low Pressure side of hydraulic circuit Applications: Mobile and Industrial Hydraulics Our Part Number: 24640 – No Bypass 26307 – 2 Bar (29 psi) Bypass 26308 – 5 Bar (73 psi) Bypass 26309 – 8 Bar (116 psi) Bypass Core (Finned area) Dimensions: 31.8” x 16” x 2.56” Inlet: -20 SAE O-Ring Seal (1-5/8-12 UN-2B) Outlet: -20 SAE O-Ring Seal (1-5/8-12 UN-2B) Overall Dimensions: 38.9” x 18.3” x 8.2” Max Working Temp: 250°F Max Working Pressure: 360 psi Fan Data: 12 Volt DC Electric Motor 22AMP Current Draw MetriPack 280 Connector (Male and Female connectors included) Flow Range: 0-120 GPM Notes: Reference performance graphs for proper sizing and mounting configuration 100% LEAK TESTED FROM THE FACTORY
- Heavy Duty Aluminum Bar and Plate Construction
- 4 Variations of Bypass Ratings
- No Bypass, 2 Bar Bypass, 5 Bar Bypass, 9 Bar Bypass
- #20 SAE O-ring connections, 12V Fan
| Wattage | 264 watts |
|---|---|
| Brand Name | American Cooling Solutions |
| Item Weight | 50 Pounds |
| Manufacturer | American Cooling Solutions |
| Cooling Method | forced air |
| Power Connector Type | 4-Pin |
| Item Dimensions L x W x H | 38.9"L x 16"W x 2.56"H |
