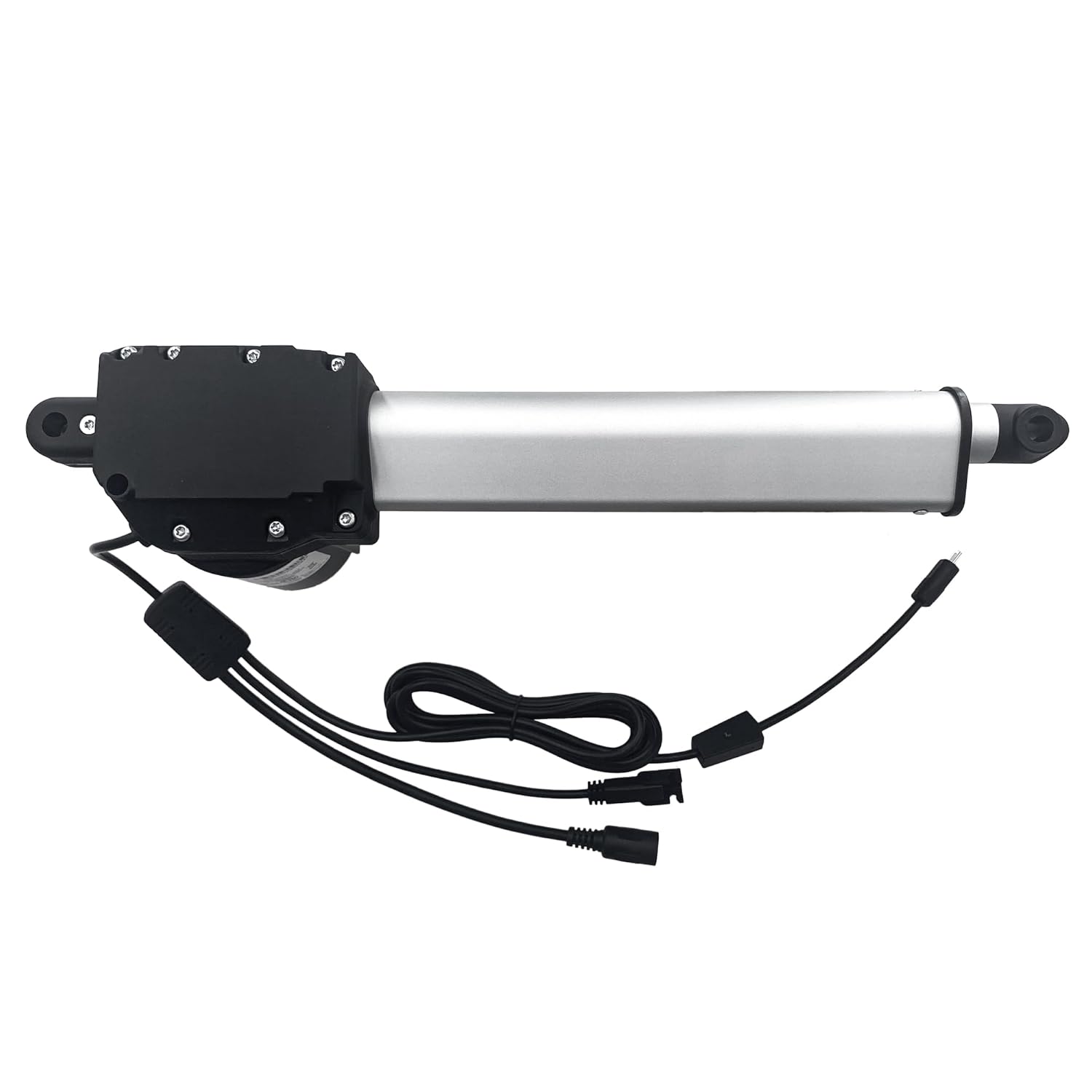

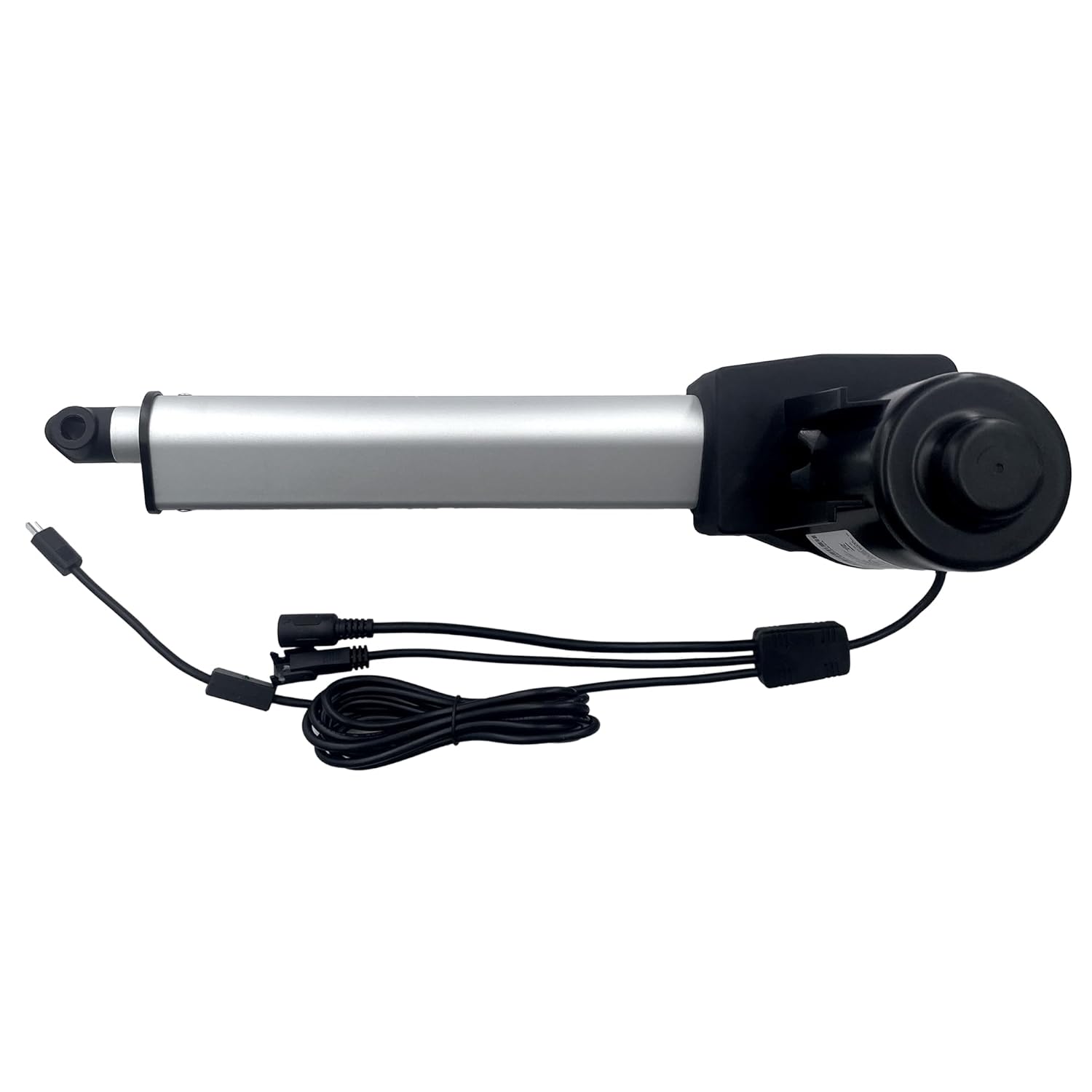

Lift Chair Richmat Model HJA58 Replacing GM1450-LM Actuator Motor Replacement

This is richmat model HJA58 replacing GM1450-LM actuator motor replacement. It has three Plugs, the 2 pin male plug connects to the power supply, the 2 pin female plug connects to the deputy motor, the 5 pin round plug connects to the remote, if the end is different, it will not be replaced. This motor is compatible with the following Chair models: UC550-JPT, UC550-M, UC556-SME, UC556-MLA, UC520-M, UC792, UC680-M. Please confirm whether the technical data are the same as your motor, if the model is the same but the stroke or minimum install size are different, it cannot be replaced.Technical data:Model: HJA58 GM1450-LMStroke: 212mm/8.35inchesMinimum install size: 394mm/15.51inchesMax. Load: push 6000N, pull 4000NNote: There are several versions of this motor model HJA58, different versions have different Pins, stroke and install size. If it is different, it cannot be replaced. This motor is not compatible with the UC550-L chair.

• This is Richmat Model HJA58 Replacing GM1450-LM Actuator Motor Replacement
• Three Plugs, the 2 Pin Male Plug connects to the Power Supply, the 2 pin Female Plug connects to the Deputy Motor, the 5 Pin round Plug connects to the Remote, if the End is different, it will not be replaced
• This Motor is compatible with the following Chair models: UC550-JPT, UC550-M, UC556-SME, UC556-MLA, UC520-M, UC792, UC680-M, this motor is not compatible with the UC550-L chair
• Stroke: 212mm/8.35inches, Minimum install size: 394mm/15.51inches, Max. Load: push 6000N, pull 4000N
• Please confirm whether the technical data are the same as your motor, if the model is the same but the stroke or minimum install size are different, it cannot be replaced
