LF10-4H Pressure Switch, 4 Port Air Compressor Pressure Switch Replacement Control NPT1/4 95-125 PSI 20A

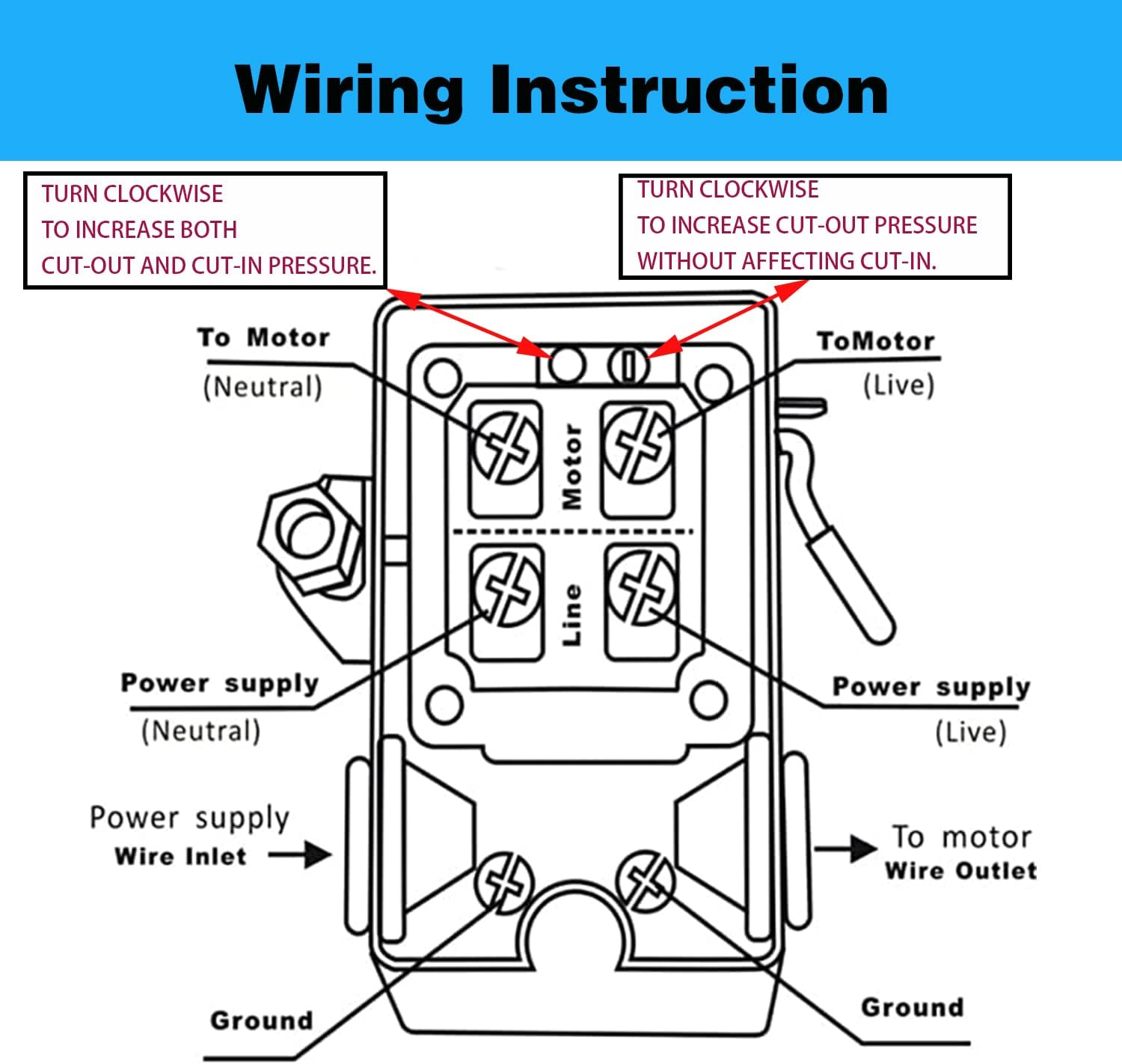

1. Introducing the LF10-4H pressure switch, designed for small, electrically driven air compressors. This switch can regulate tank pressure between two preset values and is suitable for single or two stage compressors with an amperage of less than 20 amps on 120 volt or 12 amps on 240 volt. It comes equipped with a 1/4" plastic or copper line that runs to the check valve or head of the compressor for added convenience. 2. For easy mounting of valves and gauges, this pressure switch also features a four-port manifold. Additionally, the LF10-4H switch is available with an unloader valve to prevent the compressor from starting underload. 3. To adjust the pressure settings, simply turn the switch clockwise to increase both cut-out and cut-in pressure, or turn clockwise to increase cut-out pressure without affecting cut-in.(lease refer to the instruction image for details.) 4. Trust the LF10-4H pressure switch for its reliability and ease of use. Upgrade your air compressor today with this top-of-the-line product.

• [Size]: This pressure switch features a 6.3 mm unloader valve connection and a 1/4 inch NPT Female connection. The factory-set cut-in and cut-off pressure range is 95-125 PSI. With a relief valve, it can avoid the overload operation of the air compressor.
• [Part number]: The part number for this pressure switch is LF10-4H-1-NPT1/4-95-125. It is designed for use with a single stage or two-stage air compressor that pumps up to 125 PSI.
• [Convenient to use]: The four-port manifold gives you the flexibility to mount the switch in any direction and add a relief valve, gauge, or multiple air outlet ports.
• [Intelligent handle design]: The built-in On/Off metal lever and unloader located on the side of the switch allow you to easily cut off air compressor and 4-port base simply the mountion of exhaust valve and pressure gauge.
• [Safe to use]: This switch comes preset to turn the compressor on at 95 psi and shut off at 125 psi, providing reliable and safe operation.
