INJORA INJS022-360 22KG 360° Rotation Digital Servo with 25T Low Profile Winch Spool for RC Crawler Car Boat Model
Product details
| Management number | 219502302 | Release Date | 2026/05/03 | List Price | $9.60 | Model Number | 219502302 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

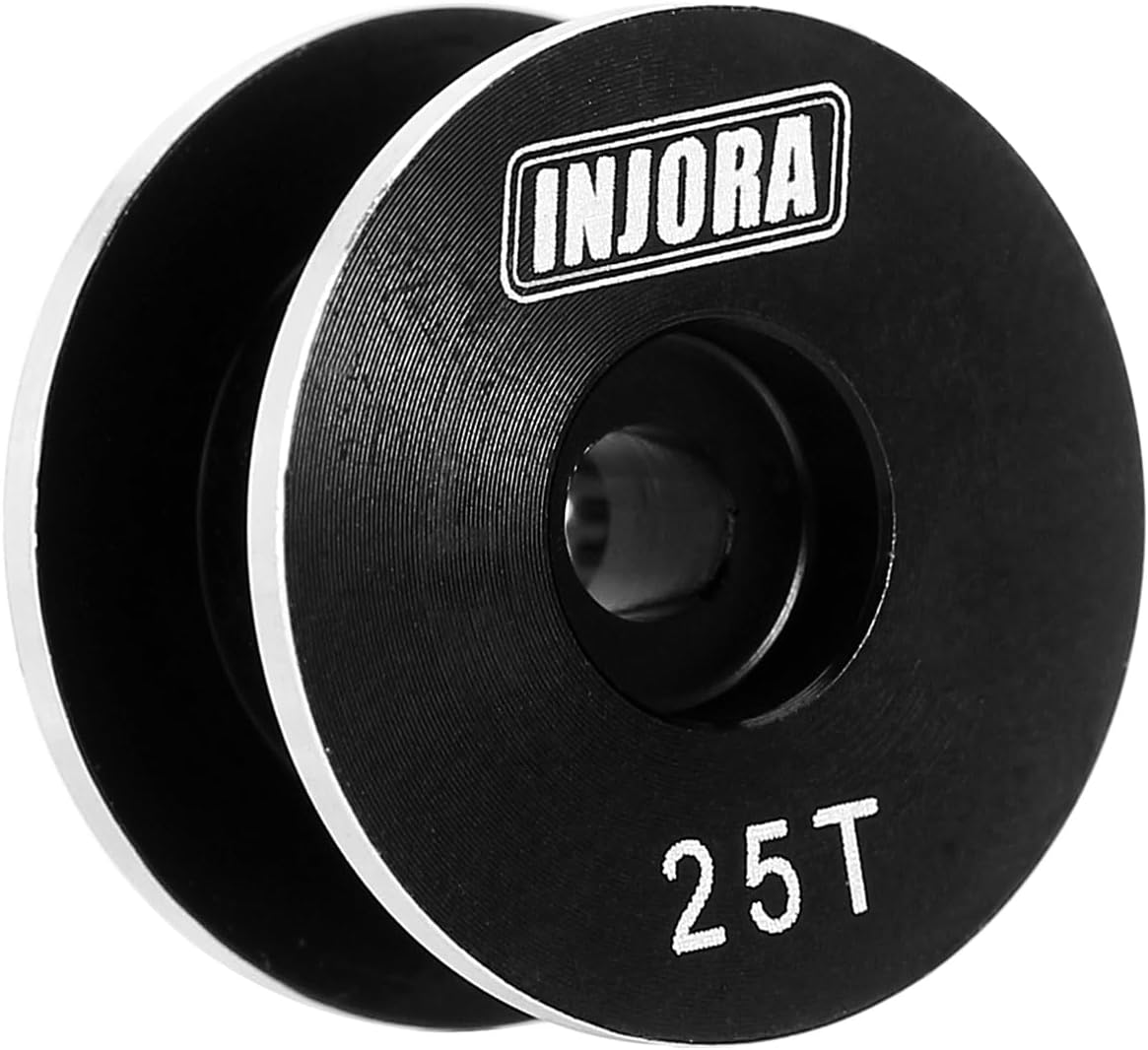

INJS022-360 Servo Specifications:Waterproof: NoDead Band: 4μsNeutral Position: 1500μs/50hz Motor: Core motor500-2500μs: 360 Continuous RotationVoltage Range: 4.8V-6.0VOperating Speed(4.8V): 56rpmOperating Speed(6.0V): 67rpmStall Torque(4.8V): 17.6kg.cmStall Torque(6.0V): 22kg.cmSpline: Φ5.9 25TDimensions: 40X20X28.8mmWeight: 50gConnector Wire Length: JR 300 mmBearing: 2BBWinch Spool Specifications:Materials: AluminiumKind: Standard (19*11mm), Low Profile(16*8mm)Standard Winch Spool Teeth: 23T/25TLow Profile Winch Spool Teeth: 25TMounting Screw: M3Nylon Rope Length: 116cm (45.67in)Steel Rope Length: 96cm (37.80in)
- High-performance digital servo winch with 22kg stall torque at 6V for 1/10 RC crawlers.
- 360° continuous rotation and core motor for precise control and smooth operation.
- Features reinforced metal gears for durability and reduced noise levels.
- Compatible with a wide voltage range of 4.8V-6.0V, offering speeds of 56rpm to 67rpm.
- Includes aluminum winch spools and both nylon and steel ropes for versatile use.
| Size | low profile winch spool |
|---|---|
| Brand Name | INJORA |
| Unit Count | 1.0 Count |
| Manufacturer | INJORA |
| Power Source | rechargeable battery |
| Material Type | Aluminium |
| Operation Mode | Automatic |
| Indoor Outdoor Usage | Indoor |
| Is Assembly Required | No |
| Age Range Description | Kid |
| Educational Objective | Develop problem-solving skills and learn about mechanical systems through assembly and operation. |
| Supported Battery Types | Rechargeable battery with voltage between 4.8V and 6.0V |
| Manufacturer Part Number | INJS022-360-96 |
| Manufacturer Maximum Age MONTHS | 120 |
