High Pressure Oil System, Gauge Air Meter, IPR Air Test Tool Replacement for Ford Powerstroke 6.0L 7.3L Diesel 1994-2007

Part TypeDual purpose test tool kit - High Pressure & Air Leak Test Tool KitScope of ApplicationReplacement for Ford 6.0L - 7.3L Powerstroke Engines, Includes 7.3L Powerstroke High Pressure Oil System IPR Air Test Fitting.To connect1. Remove the air cleaner, FICM, and coolant degas bottle (turbo removal is NOT required);2. Remove the IPR valve .3. Thread in the tool, hand tightening using the hose; connect shop air and listen for leaks.Locate smallest leaks: Close the shutoff valve on the tool to seal the system. If desired, a scan tool can be used to monitor air pressure in the system by observing the ICP sensor reading.Package Includes1x Hose1x Valve1x 6.0 ICP fitting1x 7.3 ICP fitting1x Air meter2x Interconnectors3x Copper washer1x Jake introduction1x PTFE tape1x T fitting(As Pics Shown)

• 【Compatibility】: This complete IPR air test tool kit replacement for 1994-2007 Ford Powerstroke 6.0L and 7.3L engines. It includes a 7.3L Powerstroke high pressure oil system IPR air test fitting, making it a perfect match for these specific diesel engine models
• 【Effective Function】: High pressure oil leaks are a major weakness of 6.0L-7.3L diesel engines, often causing hard-start or no-start conditions when the engine is hot. This tool replaces the IPR valve to completely seal the system, allowing you to detect even the smallest leaks quickly and accurately
• 【Outstanding Advantages】: No scan tool or IPR driver tool is required. Engine builders can verify no high-pressure oil leaks before installing the engine, avoiding difficult post-installation repairs. It works with the latest updated standpipes, and the heavy-duty hydraulic hose is rated up to 5,300 PSI. We recommend air checking after system disassembly to prevent costly repairs
• 【Easy Installation & Operation】: No Turbo Removal Needed: To use, simply remove the air cleaner, FICM, and coolant degas bottle (turbo removal is not required). Remove the IPR valve, thread in the tool and hand-tighten using the hose, then connect shop air and listen for leaks. Closing the shutoff valve helps locate the smallest leaks

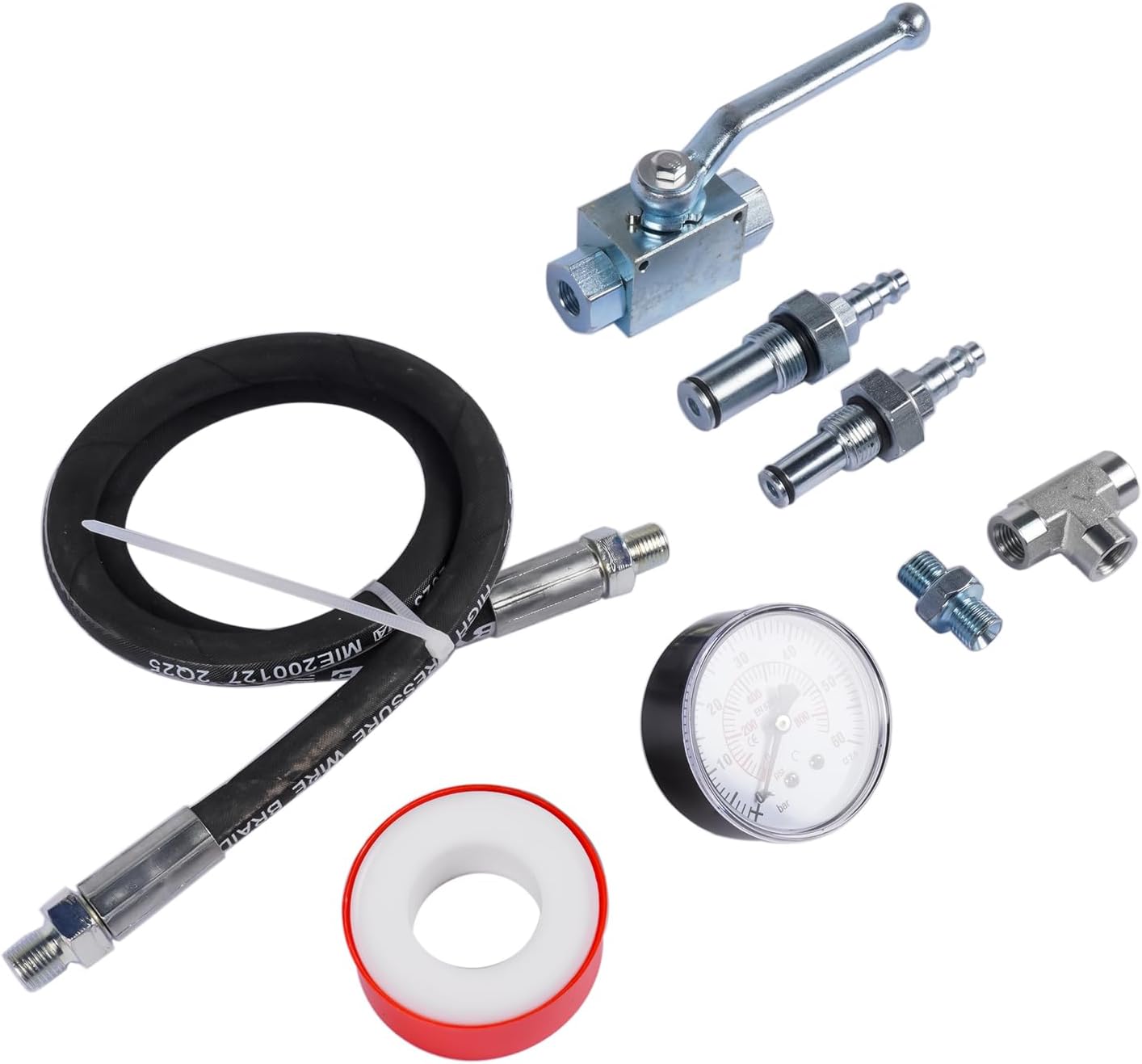

• 【Packaging includes】: The kit comes with everything you need for leak detection, including 1x hose, 1x valve, 1x 6.0 ICP fitting, 1x 7.3 ICP fitting, 1x air meter, 2x interconnectors, 1x Jake introduction, 1x PTFE tape, and 1x T fitting
