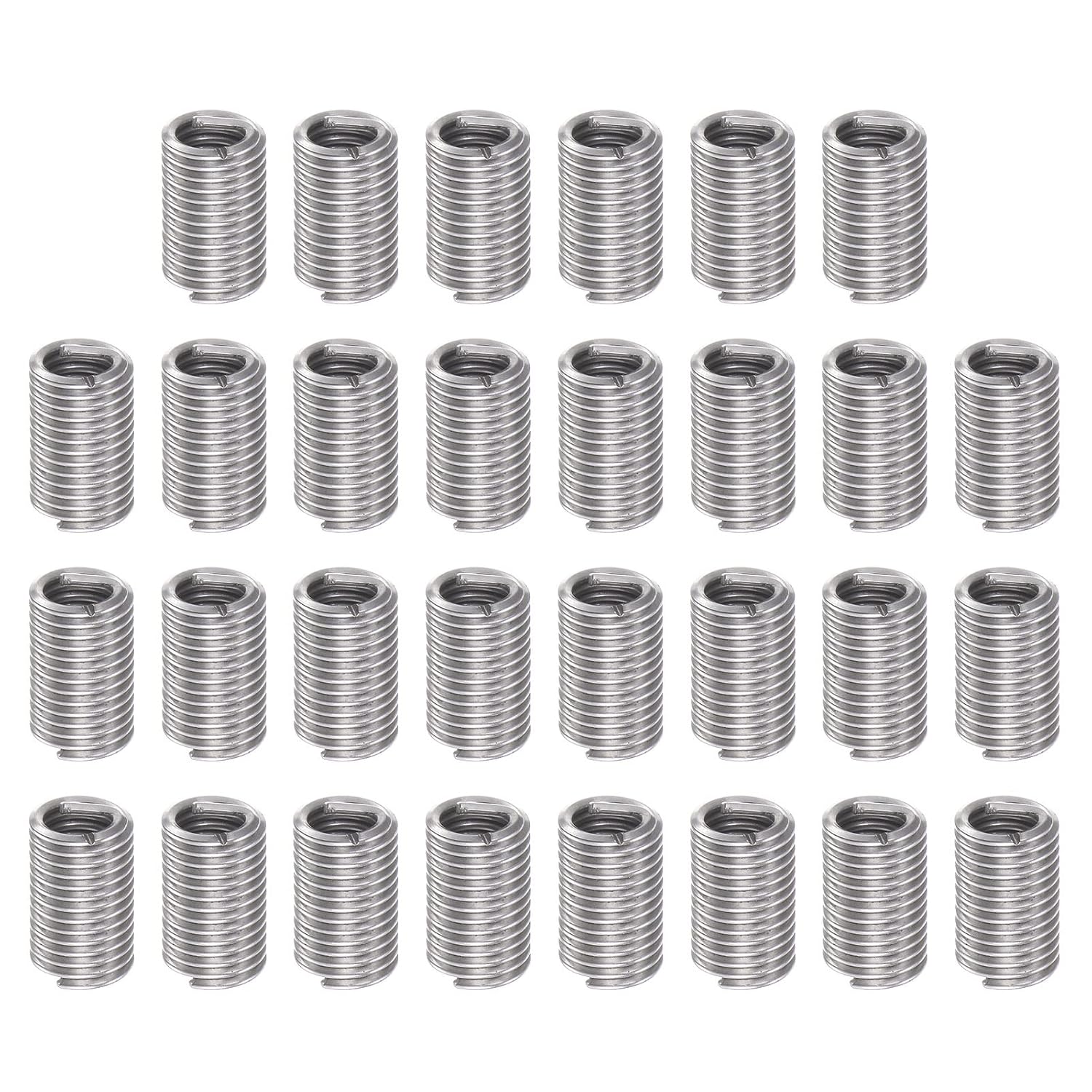

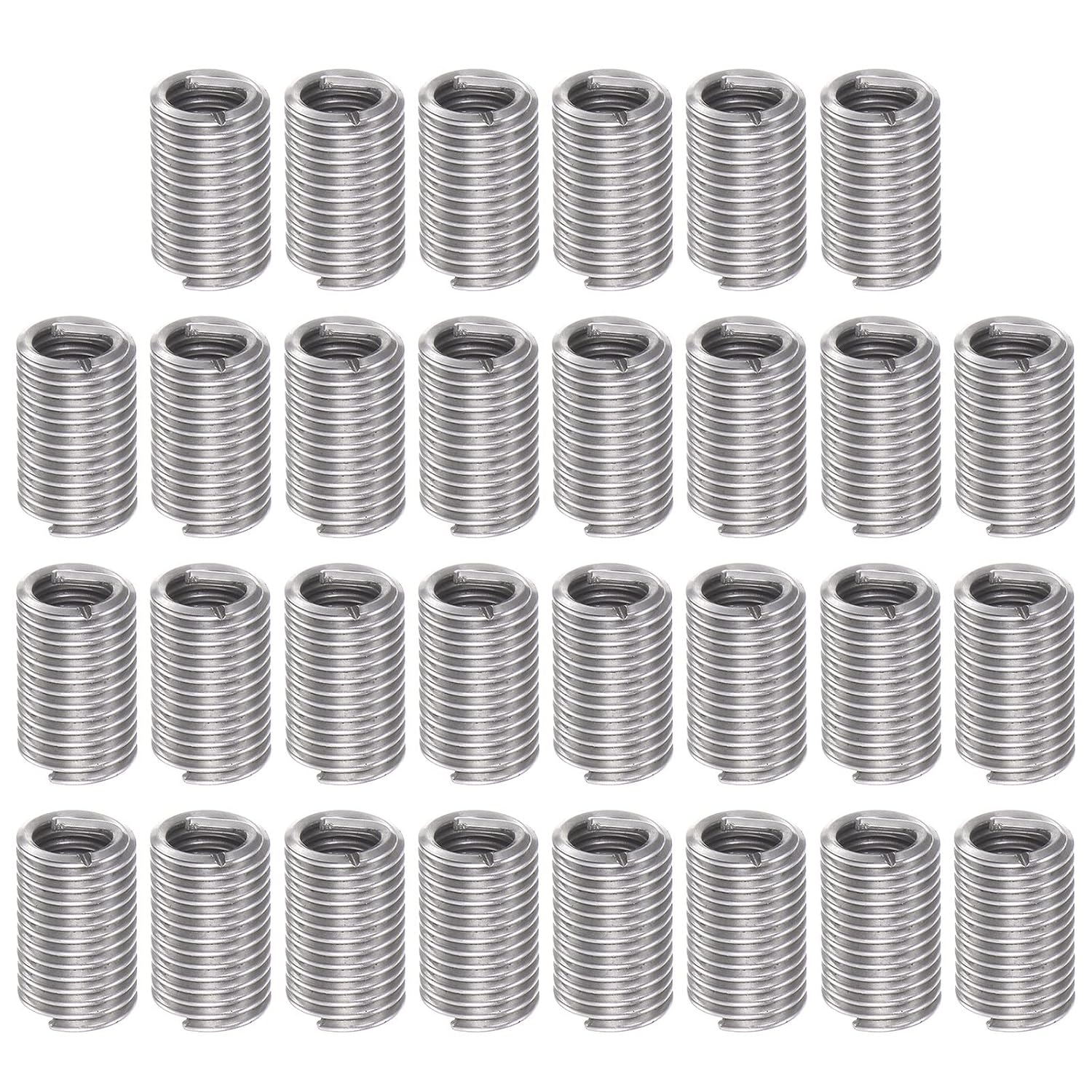

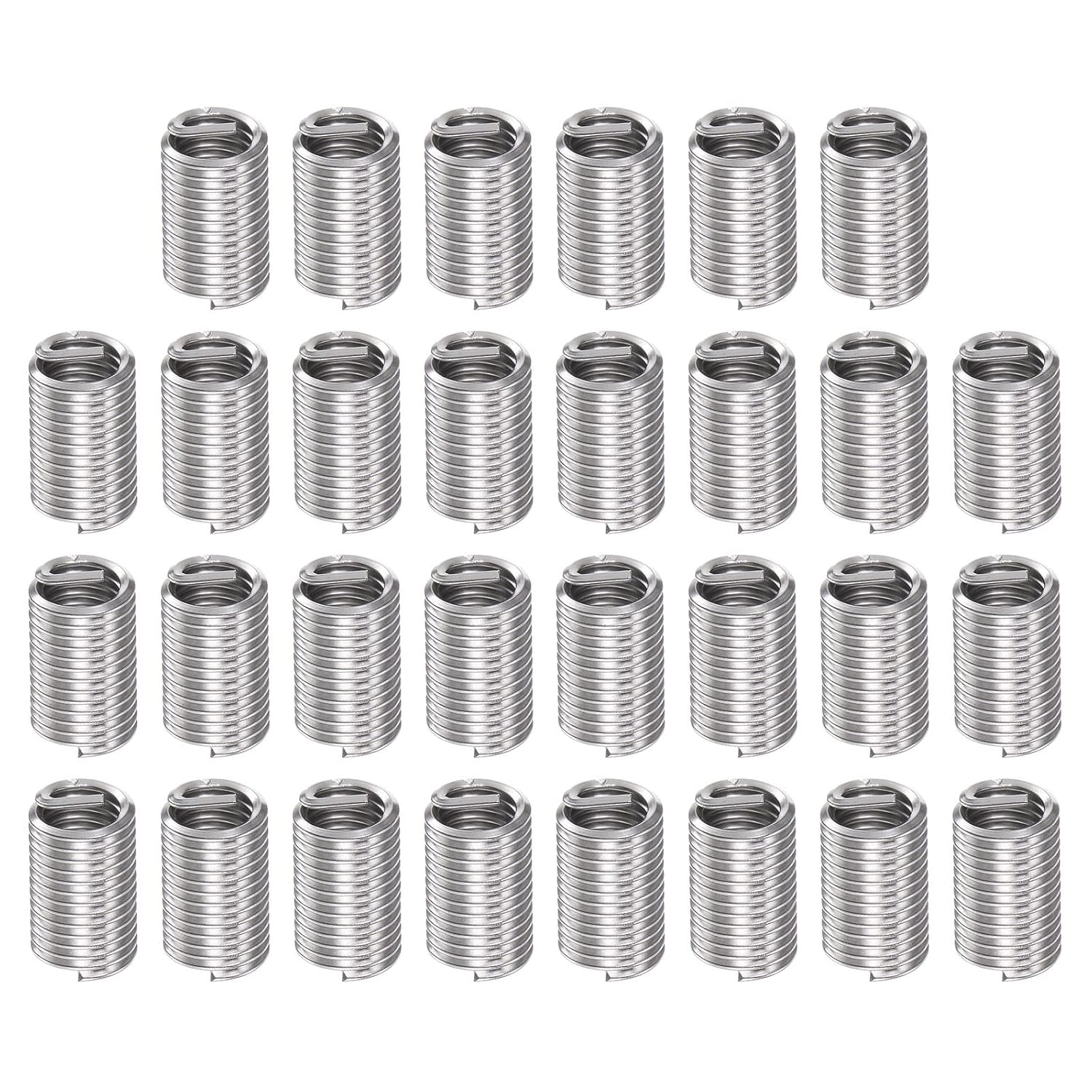

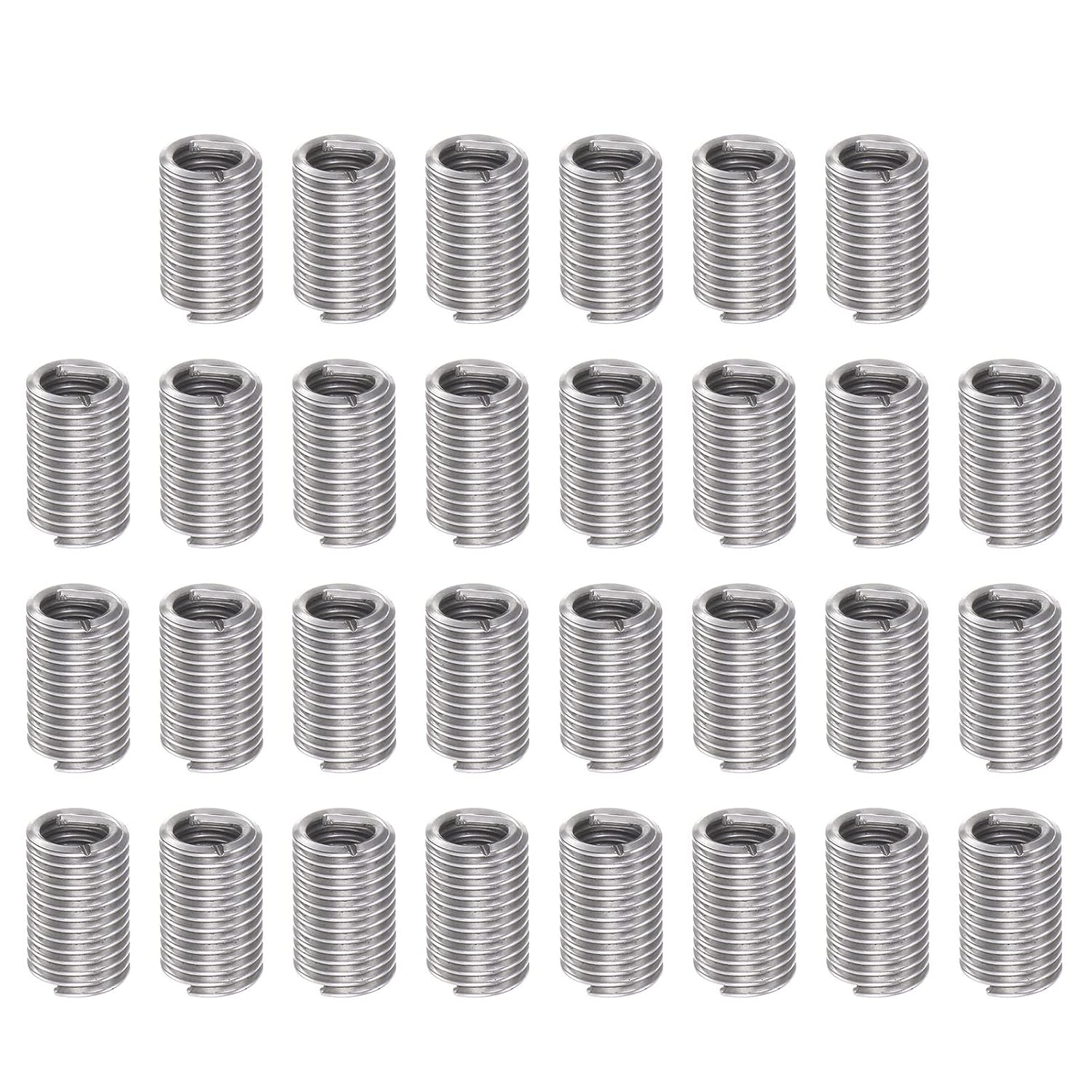

HARFINGTON 30pcs Wire Threaded Inserts 5/8-11 UNC 3D 47.7mm 304 Stainless Steel Helical Coiled Wire Thread Sleeve
Product details
| Management number | 218113828 | Release Date | 2026/05/03 | List Price | $9.56 | Model Number | 218113828 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Size - Thread size: 5/8-11 UNC; effective length (after Installation): 3D = 47.7mm / 1.88"; free state length: 38mm / 1.5"; free state outer diameter: 19mm / 0.75"; type: helical; surface treatment: white washing.
- Material - 304 stainless steel has good corrosion resistance, rust prevention, high hardness, and excellent oxidation resistance. It is austenitic stainless steel, which is non-magnetic or slightly magnetic.
- Features - Designed with a certain of elastic, and provides an even load. Wire thread inserts have self-tapping capability without pre-tapping the base metal. Large contact surface with finished products, strong tensile force. Strong resistance to vibration, no deformation.
- Applications - Mainly used for various low-strength metal and non-metal materials, such as aluminum, magnesium, cast iron, plastic, rubber, MDF, ceramics, fiberglass, wood. Improve the strength and wear resistance of threaded connections, prevent thread loosening and slippage
- Note - When the installation amount is small, take the corresponding bolts + nuts, fix the thread insert on the screw and fix it with the same type of nut to make the three in one. Use a wrench to screw the threaded insert into the bottom hole and remove the screw.
| Brand | HARFINGTON |
|---|---|
| Model | hta221114hh0773 |
| Size Name | 5/8-11 UNC |
| Unit Count | 30.0 Count |
| Part Number | hta221114hh0773 |
| Thread Size | 5/8-11 UNC |
| Manufacturer | HARFINGTON |
| Fastener Type | Bolt, Helical |
| Item Diameter | 19 Millimeters |
| Material Type | Stainless Steel |
| Item Dimensions | 5.12 x 5.12 x 2.36 inches |
| Number Of Items | 30 |
| Number of Pieces | 30 |
| Screw Head Style | Hex |
