Geomembrane HDPE Welding Machine, Plastic Membrane Hot Wedge Welder 12cm Overlap Tool for Sealing Thick 1.0-3.0mm Digital Control System
Product details
| Management number | 220701020 | Release Date | 2026/05/03 | List Price | $1,145.03 | Model Number | 220701020 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

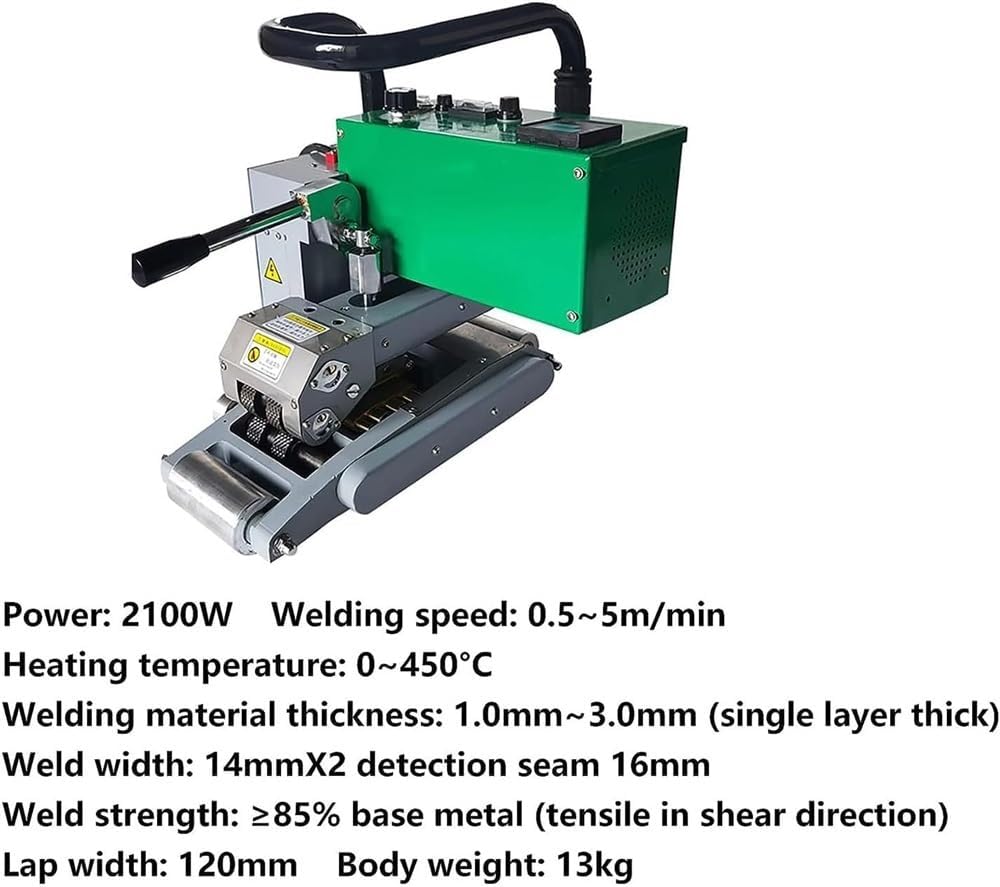

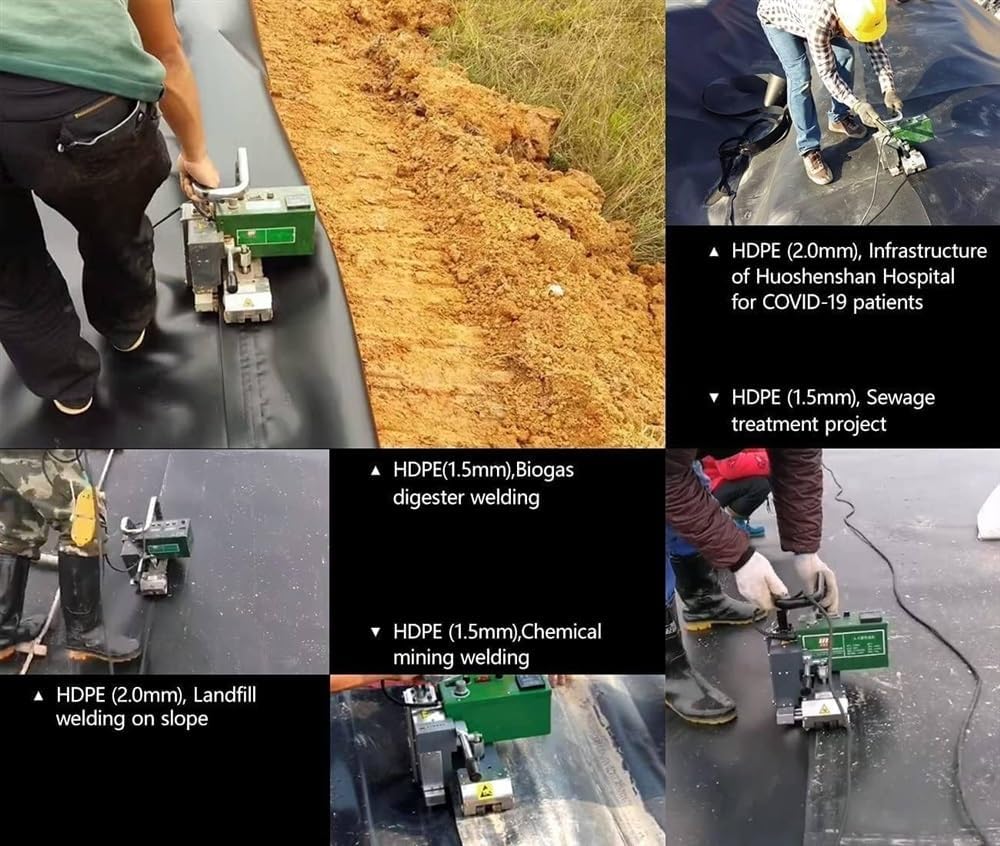

Our geomembrane welding machine can weld 1.0mm to 3.0mm thick hot melt materials, such as HDPE, LDPE, PVC, EVA, ECB, PP, etc.application:Water conservancy, aquaculture, landfill, chemical mining, sewage treatment, roof construction and other waterproof projects.feature:1. Advanced intelligent digital temperature control system2. High-performance high-torque motor combined with double-precision drive movement3. Advanced "T" arm design and pressure regulating structure4. Special stainless steel pinch wheel, strong pinch force5. Metal Hot WedgeTechnical Parameters:Power: 2100WWelding speed: 0.5-5m/minHeating temperature: 0-450°CWelding material thickness: 1.0mm-3.0mm (single layer)Weld width: 14mm×2, internal gap: 16mm, joint strength 85% of base metal, lap width: 12cm, net weight: 12kg br/> insulation class: IIpacking list:1 x Geomembrane welding unit1 handbag
- 【Pressing wheel】Special stainless steel pressing wheel, strong pressing force, can weld 1mm to 3mm thick film

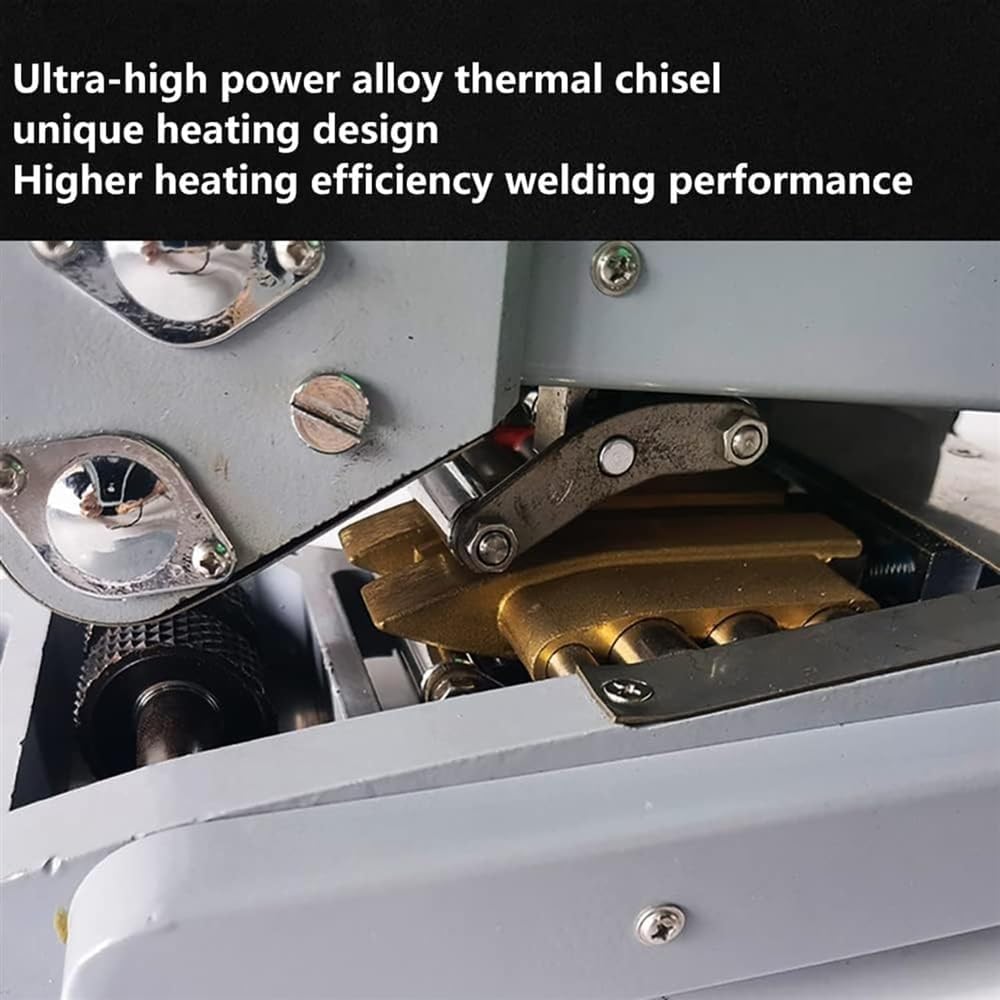

- 【Heating System】Powerful brass heating wedge with 14mm x 2 weld and 16mm internal cavity for testing weld quality. Welding efficiency increased by 30%.
- 【Digital Control System】Simple and intuitive operation, closed-loop control of heating temperature, on-site display of working voltage, and real-time monitoring of working parameters.
- 【High-torque transmission system】The high-torque motor is equipped with two sets of sophisticated transmission mechanisms, which can easily cope with large slopes and relatively harsh construction environments.
- 【Pressure adjustment system】According to the thickness of the material, it is convenient to select the appropriate pressure; T-arm head design ensures balanced pressure and uniform weld seam
| Size | One Size |
|---|---|
| Color | One Color |
| Item Weight | 1.76 ounces |
| Part Number | QIUFANGM |
| Manufacturer | QIUFANGM |
| Power Source | ac |
| Item model number | QIUFANGM |
| Batteries Required | No |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
| Item Package Quantity | 1 |
