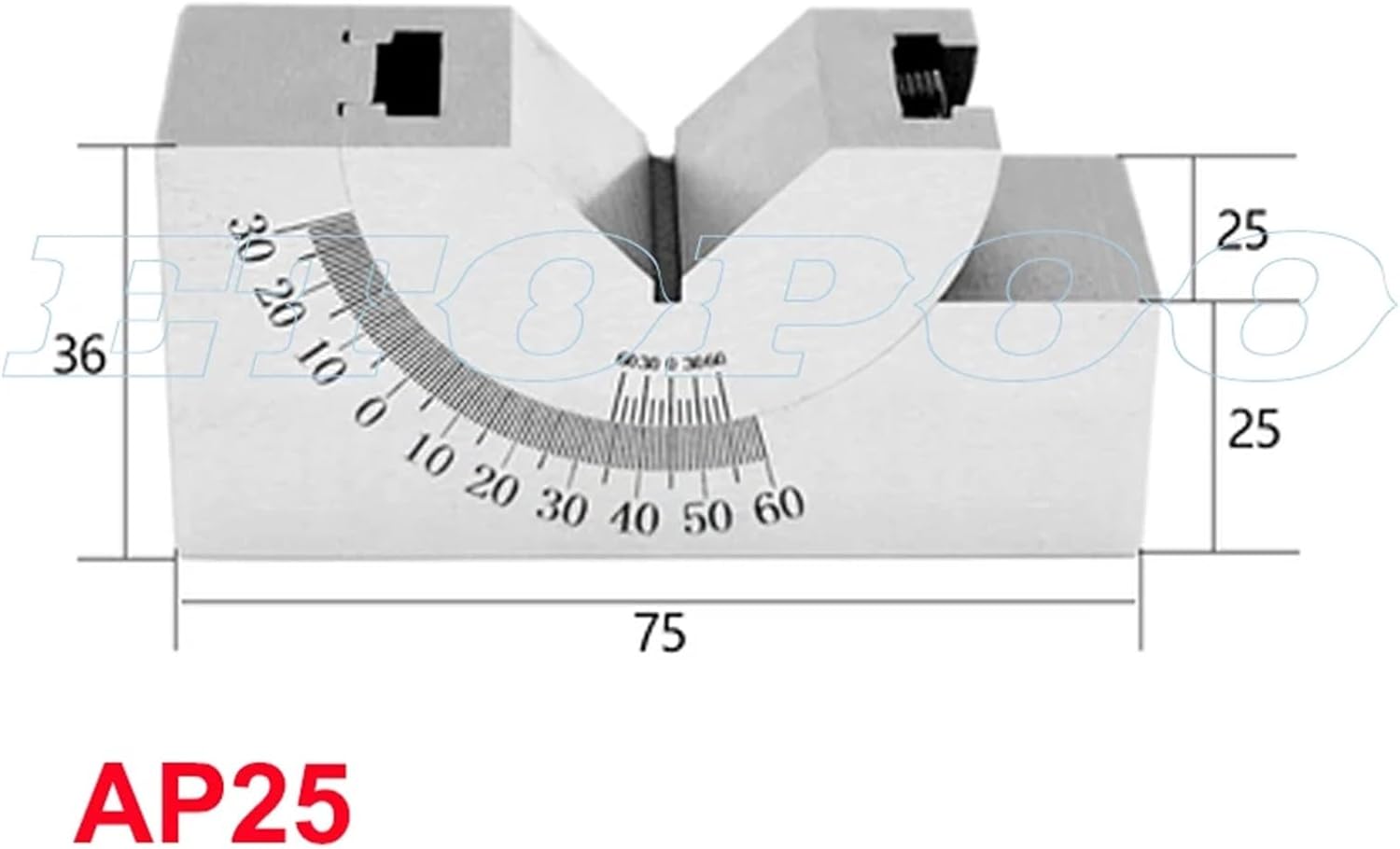

Gauge Block Milling Machine Precision Parts Adjustable Pad 0/30/60 Angle Gauge Debugge V Block Angler Top Tool AP25 AP30 AP46 for Measuring(AP25)

Budget: Material: Steel, surface hardened to HRC58-62°, nickel-plated. Colour: silver. Type: KP25 KP30 KP46 Angular accuracy 10' in Nonius readable Micro Adjustable 0° to 60° with Stop Scr Uses: In the milling machine, planer, drilling machine with adjustable angle grinder and regulations on the blade, crossing with other accessories or clamping the workpiece after workpiece processing, such as slope processing, sloping hole drilling and the like. Nickel plating, oxide parallelism and vertical precision grinding of each working face to 0.001mm. It can be a cursor indicating the angle of continuous tilt adjustment and then secured with screws, which are used to create a variety of fixed angle processing and workpiece testing. Package includes: 1 x Adjustable Angle Block 1 x Wrench Features: Applicable scene: In the milling machine, planer, grinder and drilling with adjustable angle on the blade, cross or with other devices will be the workpiece after clamping it, such as slope processing, oblique drilling, etc. Use: , loosen the screw, pull the V-shaped block along the base of the rotation of the guide wheel, looking for the target angle. , the use of the principle of reading the cursor, the main e in the index of 1 °, the cursor index of 10 '. The cursor line ''0'' is aligned with the line ''0'' of the main e to indicate that measurement A is parallel to the reference line and the reference B is perpendicular to the reference line. When the cursor line "0" is on the right side of the line "0" of the main e, the degree is with the cursor line "0" and the score is with the e of to the right of the cursor line ''0'' (the reading is the same as that of the kingfoot) Degrees (°), minutes (') which A, B measures the surface counterclockwise and rotates the angle. When the cursor line ''0'' is to the left of the line ''0'' of the main e, the degree is with the cursor ''0'' and the score is with the left and the cursor line ''0''. r the degree (°), points (') said A, B by measuring the angle of clockwise. After adjusting the angle to the target value, tighten the V-block to the base. Main technical indicators: When the measuring surface A is parallel to the base surface and the measuring surface B is perpendicular to the reference one, the line ''0'' of the cursor does not match the line ''0'' of the main e. greater than 3 ', and the curvature of both ends of the cursor is different from the main e. The degree of coincidence is not greater than 5'; On the other hand, tighten the screw so that the 0° line of the main e and the cursor line "0" are aligned, the measuring surface A and the parallelism of the reference are not greater than 0.01mm, the measuring surface B and the vertical no more 0.01mm in a fixed state, the indication error of the adjustable angle meter is not greater than ±10' Note: Please allow 1-5 mm error due to manual measurement. Item color displayed in photos may be showing slightly different on your computer monitor since monitors are not calibrated same. Model Number: AP KP25 KP30 KP46 DIY Supplies: Metallurgy

• 1. **Material**: The adjustable pad for precision parts of the milling machine is made of steel, with a surface hardened to HRC58-62 and nickel-plated for greater resistance to oxidation, ensuring longevity and reliability in your machining tasks.
• 2. **Versatile Angle Measurement**: This adjustable pad features an angular accuracy of 0° to 60°, making it suitable for a variety of applications such as slope processing and slope hole drilling, for use with milling machines and planers.
• 3. **Micro-adjustable design**: With a readable e nonius, the adjustable pad for precision milling machine parts allows for micro-adjustments, allowing for precise setup for every project and accurate results on all machining operations.
• 4. **SAFE AND STABLE**: The innovative design includes a cursor for continuous tilt adjustments that can be quickly secured with screws, providing stability and confidence when working on different workpieces at fixed angles.
• 5. **IMPROVED PRECISION**: Each working face of this adjustable pad is precision ground to 0.01mm, ensuring exceptional parallelism and verticality, making it an essential tool for professionals seeking high precision in their milling and machining processes.
