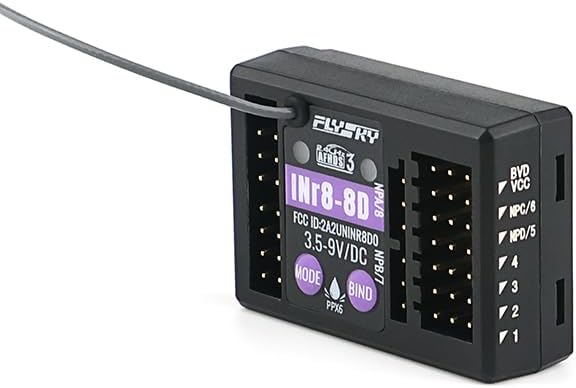

Flysky INr8-8D 2.4GHz 8CH AFHDS3 Receiver PWM PPM Ibus Compatible Transmitters Noble NB4 Series for RC Car

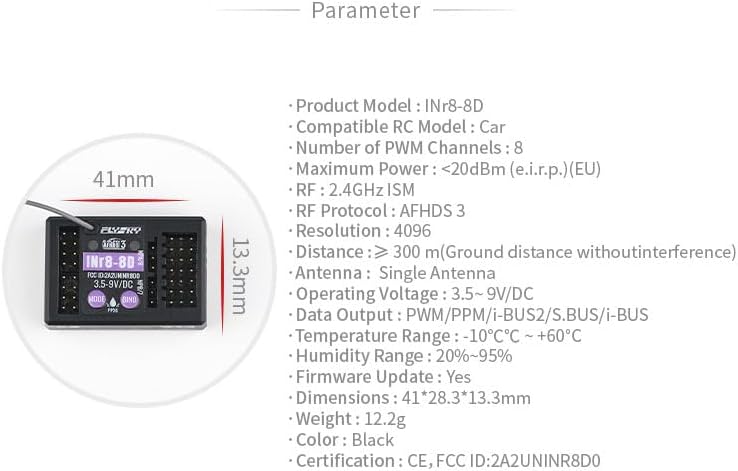

Product specification Product Model: INr8-8D Compatible Transmitters: Noble NB4 Series and other AFHDS 3 protocol transmitters This receiver is currently only compatible with the Noble NB4 series transmitter for modifying lighting functions. Resolution: 4096 Distance: ≥300m (Ground distance without interference) Antenna: Single Antenna Operating Voltage: 3.5 ～ 9V /DC Mode 2/Mode 3 Compatibility: FGr8B and other AFHDS 3 protocol receivers, FS-SR8 and other ANT protocol receivers, other non-Flysky receivers with S.BUS signal connectors. Compatible RC Model: Car Number of PWM Channels: 8 Maximum Power: <20dBm (e.i.r.p.) (EU) RF: 2.4GHz ISM RF Protocol: AFHDS 3 Data Output: PWM/PPM/i-BUS2/S.BUS/i-BUS Temperature Range: -10℃ ~+60℃ Humidity Range: 20%~95％ Firmware Update: Yes Dimensions: 41*28.3*13.3mm Weight: 12.2g Color: Black

• The Flysky INr8-8D adopts AFHDS 3 and is a versatile 8-channel receiver. It uses a single-antenna bidirectional transmission system,supporting 4 Newport function connectors and offering 8 function connectors.

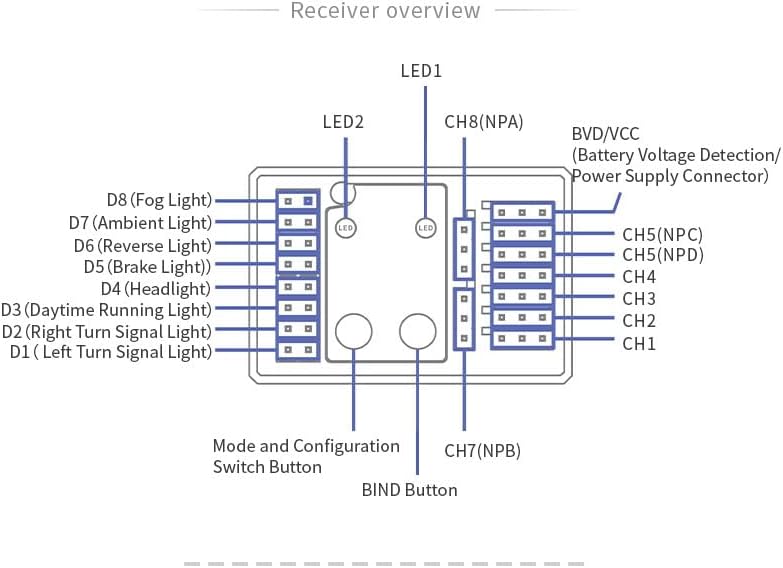

• Taking the control of LED lights through D1~D8connectors as an example, this device can be used as a receiver with lighting control functions, as a standalone LED light unitcompatible with third-party receivers, or as an S.BUS/i-BUS out/PPM signal to PWM converter compatible with third-party receivers.
• Compatible Transmitters: Noble NB4 Series and other AFHDS 3 protocol transmitters ,This receiver is currently only compatible with the Noble NB4 series transmitter for modifying lighting functions.
• Mode 2/Mode 3 Compatibility: FGr8B and other AFHDS 3 protocol receivers, FS-SR8 and other ANT protocol receivers, other non-Flysky receivers with S.BUS signal connectors.
• The Flysky INr8-8D receiver supports two-way binding and one-way binding, and can be set at the transmitter side. The transmitter will display the information returned from the receiver after the two-way binding is completed.
