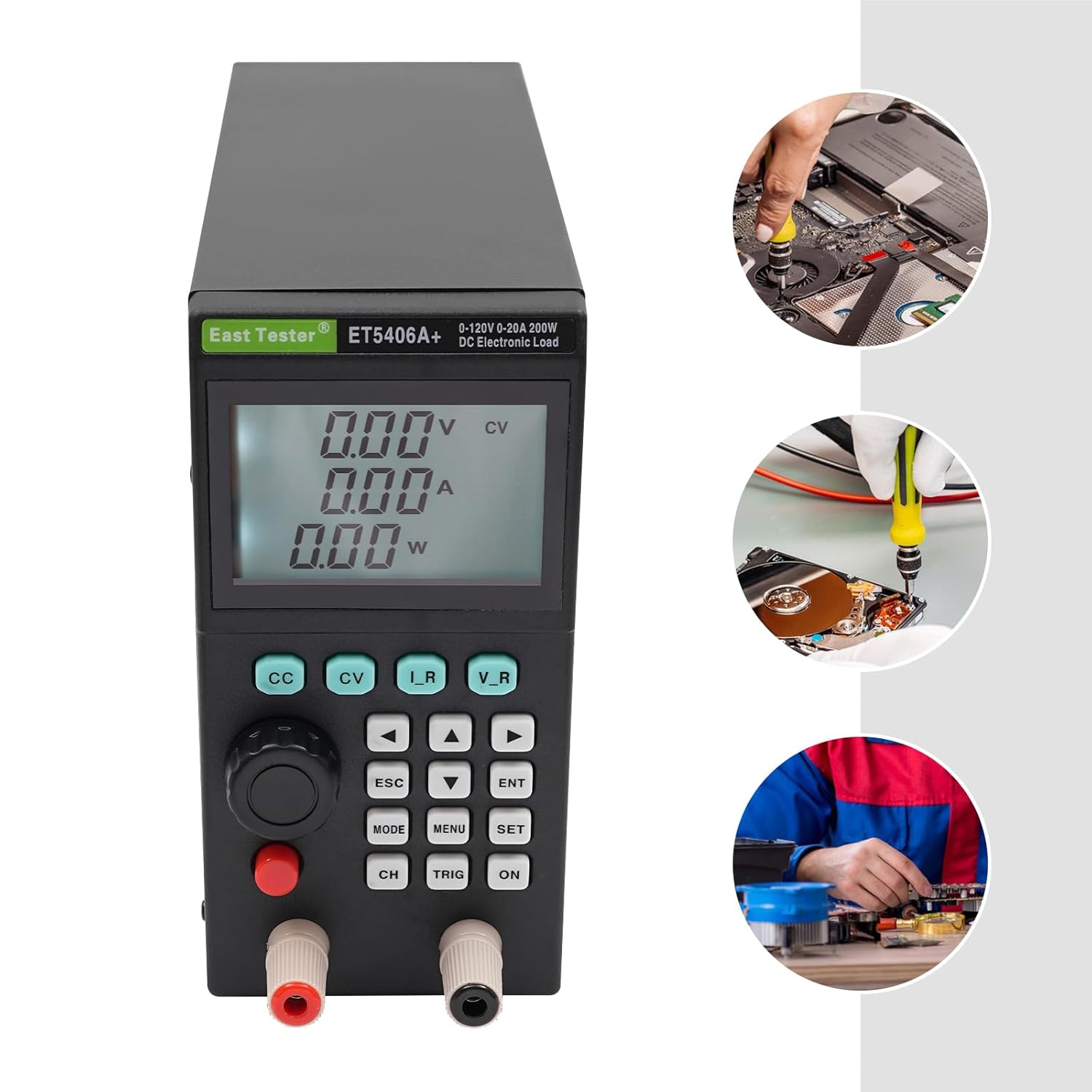

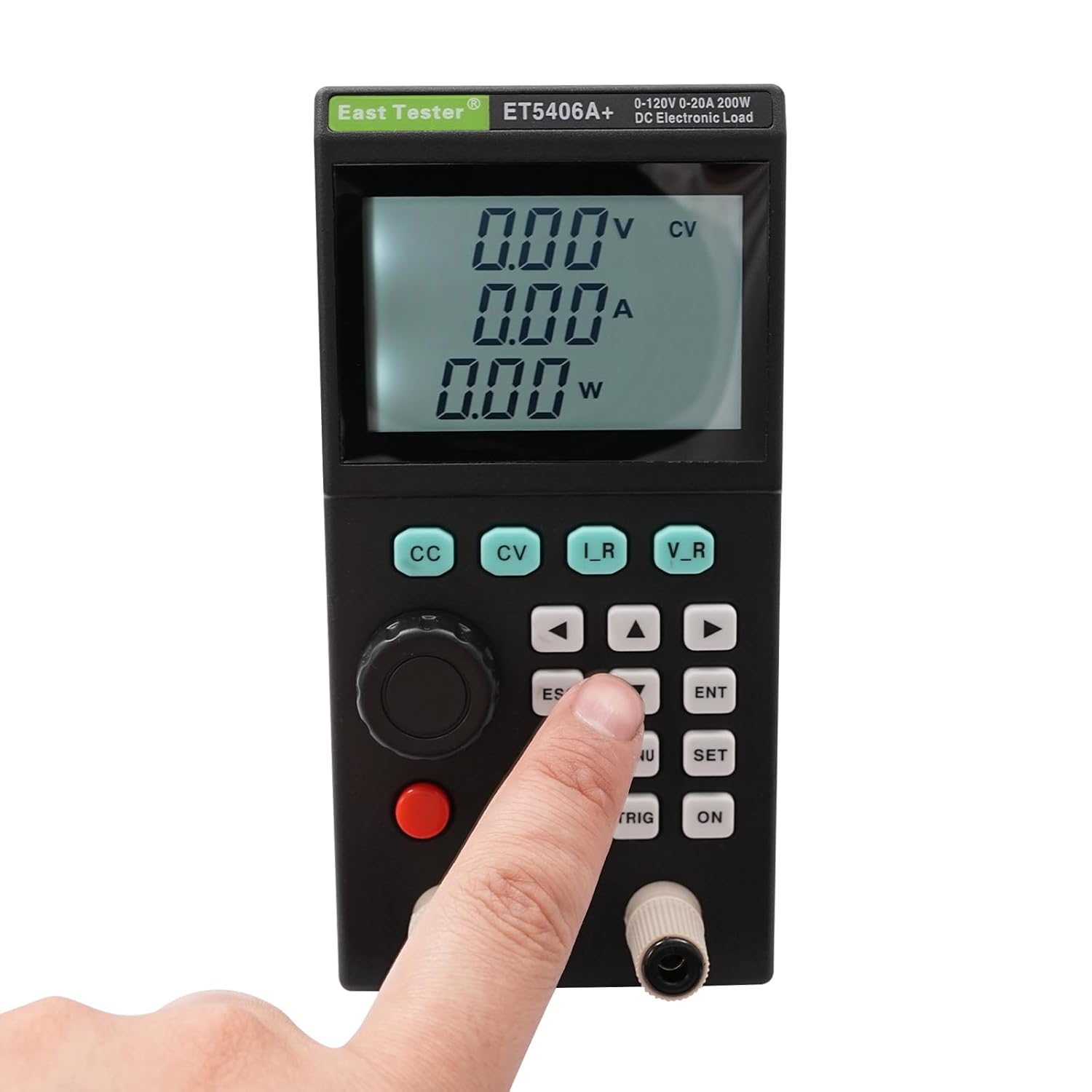

Electronic Load Tester, ET5406A+ USB DC Load Testers, 200W 0-120V 0-20A, Battery Capacity Load Detector, Battery Power Supply Analyzer, Voltage Internal Resistance Tester (120V/20A/200W)

Specifications:Model: ET5406A+Style: ModernShape: Rectangular Color: BlackMaterial: Aluminium, SiliconeSurface Treatment: Spray PaintingPlug Standard: US StandardMount Type: TabletopAssembly Required: No Power Source: Corded ElectricBattery Tester Discharge Mode: CC, CRVoltage: 0-120VInput Current: 0-20AInput Power: 200WOperating Temperature: 0°C -40°C/ 32-104 ℉Storage Temperature: -10℃ -70°C/ 14-158 ℉Relative Humidity: <80 %Maximum Discharge Capacity: 9999 AhPower Cord Length: 1.48m/ 4.85 FTCV Mode Range: 0.1~19.999V, 0.1~120.00V Resolution: 1mV, 10mV Accuracy: ±(0.05%+0.02%FS) CC Mode Range: 0~3.000A, 0~20.00A Resolution: 1mA, 10mA Accuracy: ± (0.05%+0.05%FS)CR Mode Range: 0.05Ω~4.50kΩ Resolution: 10mΩ, 1Ω Accuracy: ± (0.1%+0.5%FS) CP Mode Range: 0~200WResolution: 10mW Accuracy: ± (0.1%+0.5%FS)Gross Weight: 4.3kg/9.48 lbsNet Weight: 1.5kg/ 3.31 lbsProduct Size: 30*14*21cm/ 11.81*5.51*8.27 inPackage Size: 41*43*61cm/ 16.14*16.93*24.01 inPackage Included:1* Electronic Load Tester1* Power Cord1* Communication Interface1* Chinese ManualNotes:1.Please note that although there is an LED icon in the Mode column of the segment code screen, this instrument does not have an LED test mode, nor does it have a battery internal resistance test.2.Please note that there must be a positive voltage between the red and black terminals, if a negative voltage is input, there will be a reverse connection warning. Reverse connection may damage the instrument itself, or damage the power supply under test.

• ✅【COMPREHENSIVE TEST SUITE】This DC Electronic Load Tester offers four basic measurement modes (CC, CV, CR, CP) as well as five advanced professional modes, including battery testing, dynamic testing, scanning testing, list programming, and short circuit testing. Electronic Load Tester can fully meet various usage requirements
• ✅【POWERFUL FUNCTIONS】The dynamic testing mode can test the dynamic output performance of the power supply; the scanning testing mode can test the continuity of the power supply output within a certain range; the list mode can simulate the changes of various load states; the short circuit testing is used to simulate the short-circuit situation of the load. DC Load Testers can meet different testing standards and requirements
• ✅【REMOTE OPERATION】Battery Tester supports remote control via USB from a computer. Electronic Load Tester has a lock key function to prevent operational errors. The external trigger input interface enables the loading process to be controlled by an external signal
• ✅【DATA PROTECTION】This USB DC Load Testers has the function of saving data even when power is off, so you don't need to worry about losing test data due to sudden power failure. The built-in buzzer alarm function can promptly alert the operator, which very well meets the user's needs
• ✅【WIDELY APPLICATION】This Electronic Load Tester can be widely used in the production line testing of chargers, switching power supplies, linear power supplies, batteries, etc. DC Load Testers is an indispensable tool in the process of power product development, production testing, and quality control
