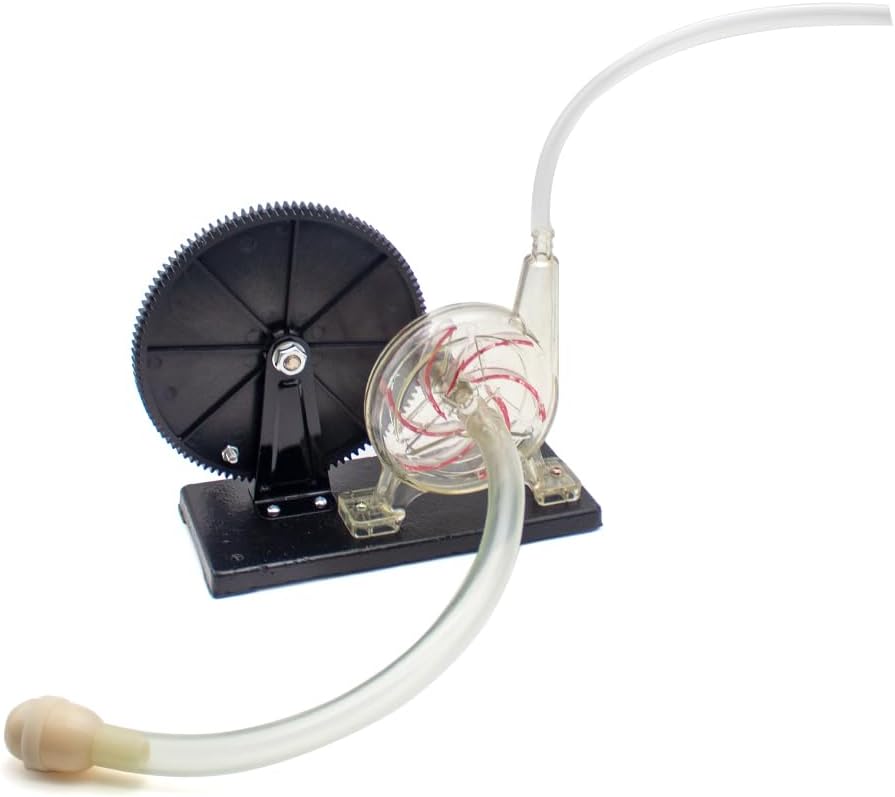

Centrifugal Water Pump Model with Gear-Driven Impeller Physics Laboratory Demonstration Equipment Teaching Instrument

Centrifugal Water Pump Model with Gear-Driven Impeller Physics Laboratory Demonstration Equipment Teaching Instrument Description: This instrument is a single-stage centrifugal pump model that applies the principle of centrifugal force to illustrate the structure and working principle of centrifugal pumps. The main components of this instrument are: a rotating shaft and an impeller fixed on the shaft in the pump chamber composed of a casing and a transparent plate; There is a drainage pipe in the tangential direction of the outer edge of the casing; There is a suction pipe in the axial direction of the shaft; Place the drain plug on the upper part of the casing; The large and small rotating wheels are connected by gears, and the entire instrument is fixed on the base. Specifications: Pump Shaft Speed: 900RPM Impeller Diameter: 100MM Lift: 1M External Size: 280x130x205MM Weight: 3.5KG Package included: 1 x Centrifugal Water Pump Model

• This instrument is a single-stage centrifugal pump model that applies the principle of centrifugal force to illustrate the structure and working principle of centrifugal pumps.
• The main components of this instrument are: a rotating shaft and an impeller fixed on the shaft in the pump chamber composed of a casing and a transparent plate;
• There is a drainage pipe in the tangential direction of the outer edge of the casing;
• There is a suction pipe in the axial direction of the shaft; Place the drain plug on the upper part of the casing;
• The large and small rotating wheels are connected by gears, and the entire instrument is fixed on the base.
