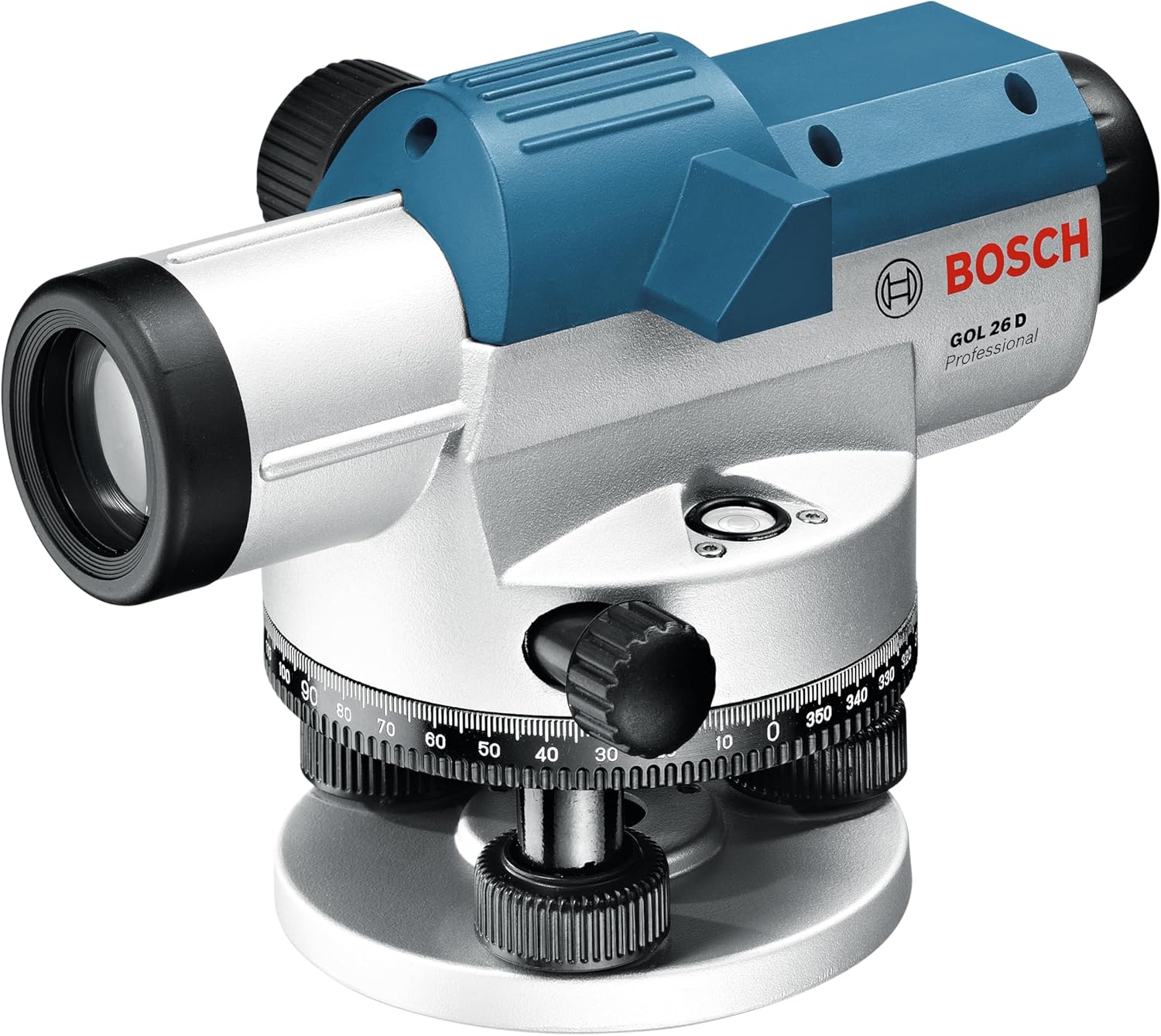

Bosch Professional Optical Level GOL 26 D (26x magnification, unit of measure: 360 degrees, range: up to 100m, in carrying case)

Optical level GOL 26 D The GOL 26 D is ideal for outdoor use thanks to its IP54 protection. It provides a self locking compensatos that protects the pendulum against damage and loss of calibration. It's 26x magnifications allows to work in a range of up to 100 . Unit of measure: 360 degrees Applications: Determine cut and fill rates to make sure a job site is level, determine how much higher a building is in relation to the street, gutters and drainage ditches. Set up of the optical level in 6 steps: 1. Mount the tool on the tripod and center it over a point in the ground. 2. Align the optical level with the three leveling screws so that the air bubble is positioned in the center of the circular bubble vial. 3. Focus the telescope. 4. Target the goal with the collimator. 5. Turn the focusing knob for a sharp image. 5. Position with the horizontal drive. Items included: • Optical level GOL 26 D • Adjusting pin • Allen key • Lens cover • Plumb bob • Carrying case

• HIGHLY ROBUST: Ideal for outdoor use thanks to a robust metal housing with dust and splash protection (IP54)
• SELF LOCKING COMPENSATOR: Protects pendulum against damage and loss of calibration during transportation
• MAGNIFICATION: 26 x Magnification for up to 100 m working range
• HORIZONTAL CIRCLE GRADUATION: for determining angles in 1-degree increments with fine control adjustment
• ITEMS INCLUDED: Optical level GOL 26 D, adjusting pin, allen key, lens cover, plumb bob and carrying case
