BK-880 Beitian GPS Module with QMC5883 Compass+GPS Active Antenna TTL Level GPS Car Navigation Quad-Mode Support GPS Glonass Beidou Galileo for Arduino Raspberry Pi Flight Controller
Product details
| Management number | 220563191 | Release Date | 2026/05/03 | List Price | $13.20 | Model Number | 220563191 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Geekstory BK-880 Beitian GPS Module with QMC5883 Compass+GPS Active Antenna TTL Level GPS Car Navigation Quad-mode Support GPS Glonass Beidou GALILEO for Arduino Raspberry Pi Flight Controller
- BK-880 supports simultaneous reception of four GNSS signals-(GPS+BDS+GALILEO+GLONASS). The abundance of visible satellites enables the receiver to select the optimal signals, maximizing positioning accuracy
- BK-880 GPS module incorporates an internal electronic compass, the QMC5883. It features built-in flash memory for storing configuration parameters, eliminating the need for reconfiguration upon subsequent use
- BK-880 is suitable for automotive and industrial tracking applications such as navigation, telematics, and drones
- BK-880 is an integrated GPS + active antenna module; it supports LED indicator display. TX LED: Flashes blue when powered on, indicating data output; PPS LED: Does not illuminate when not set; begins flashing after 3D positioning

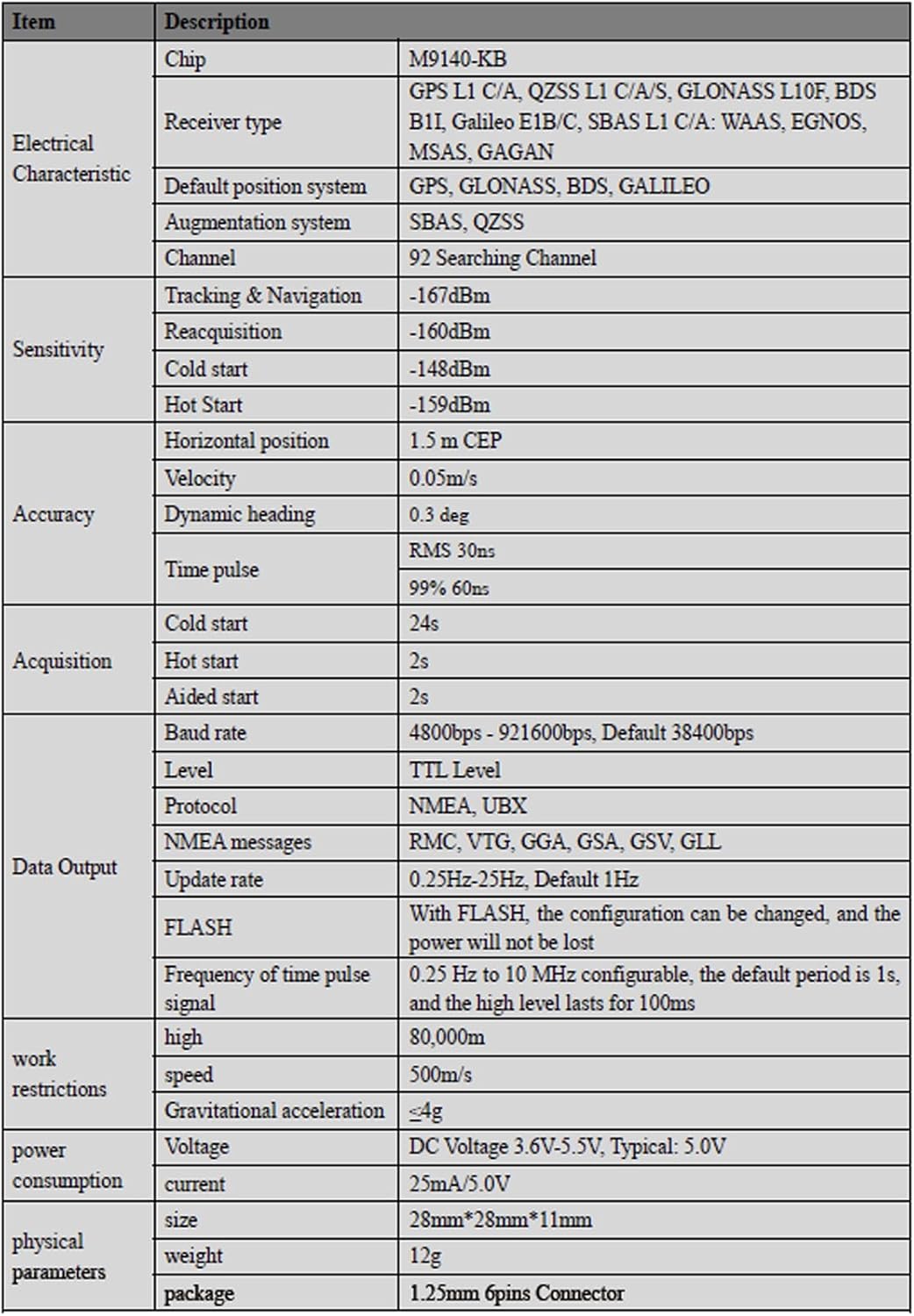

- Product Dimensions: 28*28*11mm. Connector: 1.25mm pitch 6-pin female socket. Baud Rate: 4800bps - 921600bps, default 115200bps; Output Protocol: NMEA, U.BX
| Brand | Geekstory |
|---|---|
| Map Types | Worldwide |
| Model Name | BK-880 |
| Manufacturer | Geekstory |
| Model Number | BK-880 |
| BuiltIn Media | 1pcs GPS Module+3pcs Wire |
| Additional Features | Quad-mode |
| Warranty Description | Three Months |
| Are Batteries Included | No |
| Connectivity Technology | 1.25mm pitch 6-pin |
| Compatible with Vehicle Type | Car |
