Asymmetric Cycle Timer Relay 1SPDT AC 230V 10A Long or Short Period Repeat Cycle Tntermittent Timer Electronic Relay in Din Rail (GRT6-S1 AC 230V)
Product details
| Management number | 218151912 | Release Date | 2026/05/03 | List Price | $8.40 | Model Number | 218151912 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- FUNCTION& APPLICATION: grt6-s1 AC230V cycle delay timer relay, can preset the machine start time, repeat cycle timing relay GRT6 S1 230V has a wide delay setting range of 0.1 seconds to 10 days, with a rated operating voltage of AC230V (50-60Hz), output contact: 1SPDT (1NO 1NC), rated current is 10A. This AC230V cycle delay timer delay relay can be used in motors, elevators, air conditioning systems, power systems, etc., for electrical equipment overvoltage, emergency/backup power switching control; prevent equipment reversal; normal/emergency power switch

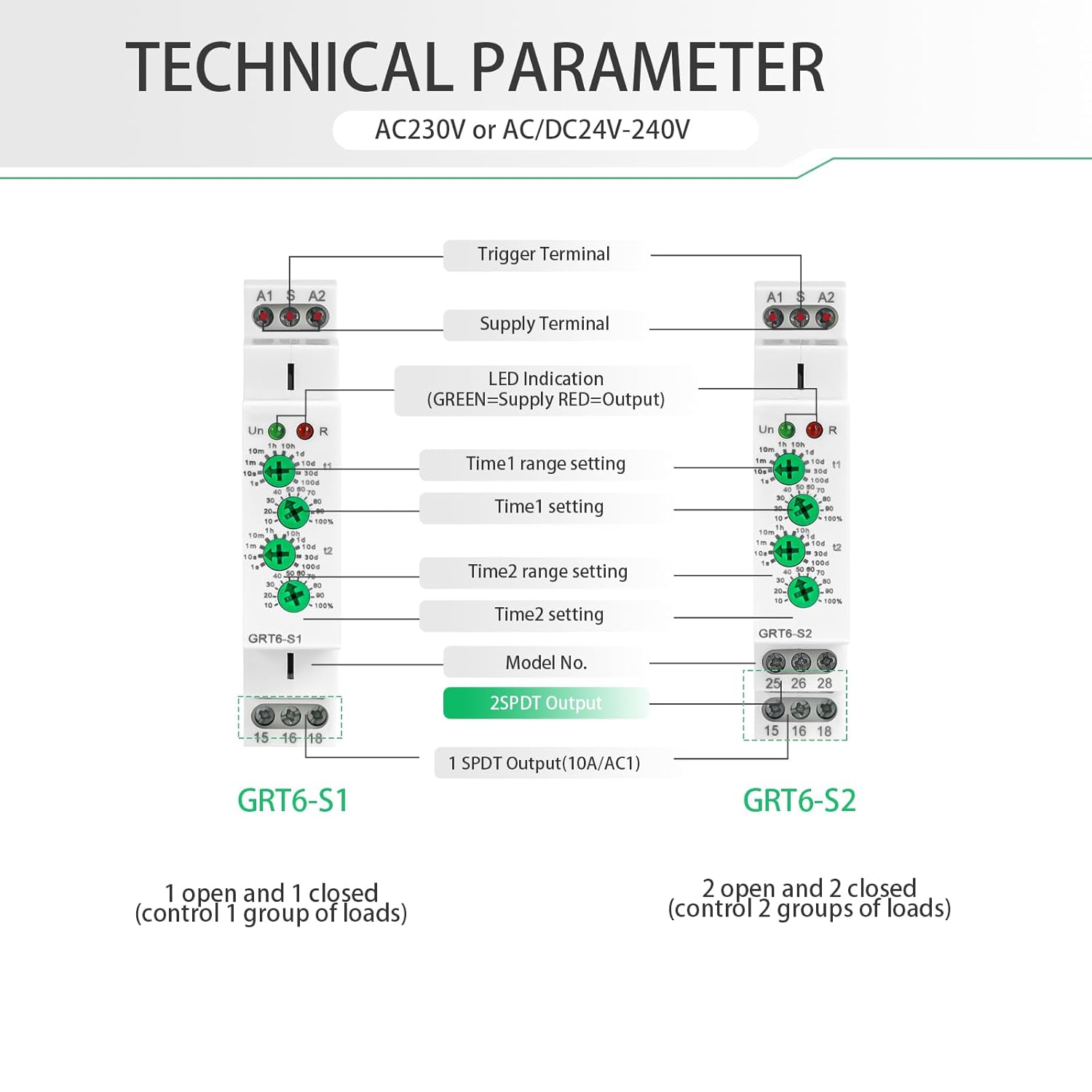

- INDICATOR BUTTON: grt6 s1 ac 230v asymmetric periodic timing relay, working status is indicated by LED indicator: green LED is always on (power on), green LED is off (power supply abnormality); red LED flashes (indicates starting to work), when the relay delay function is working, the red LED is always on, and the red LED is off (indicates stopping working). If you want to set the delay to work for 5 days and then work for 1 day: turn the first knob to 10d; turn the second knob to 50%, the circuit is connected after 5 days; turn the third knob to 10d; turn the fourth knob to 10%, the circuit is connected for 1 day, then disconnected for 5 days, and then repeat
- Model of GRT6 Time Relay: 1. GRT6-A: Delay opening relay; GRT6-B: Delay closing relay; GRT6-S： Asymmetric cycle timer relay (OFF-ON-OFF and ON-OFF-ON, the duration of OFF and ON can be set); GRT6-M: Multi functional time relay, covering GRT6 series A (delayed power on), B (delayed disconnection), C (cyclic delay: OFF-ON-OFF), D (cyclic delay: ON-OFF-ON）， And function E as shown in the figure, F,G,H,I,J
- Designed time relay: The GRT6 series delay relay has a sealed housing made of industrial grade ABS plastic to protect internal components. Its sturdy design can accompany your expensive equipment for a longer period of time and complies with UL standards CE、CB、RoHS。 The Din rail delay timer relay measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 2.4 ounces, and is installed on a 35mm Din rail. Durable, easy to install, portable and compact
- WORRY FREE AFTER-SALES SERVICE: We provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any time
| Brand Name | IGEYAPA |
|---|---|
| Item Weight | 2.4 ounces |
| Manufacturer | IGEYAPA |
| Model Number | GRT6-S1 AC 230V |
| Material Type | Acrylonitrile Butadiene Styrene, Brass |
| Number of settings | 4 |
| Included Components | 1 time relay*1 using manual |
| Manufacturer Part Number | GRT6-S1 AC 230V |
| Item Dimensions D x W x H | 3.68"D x 0.9"W x 2.88"H |
