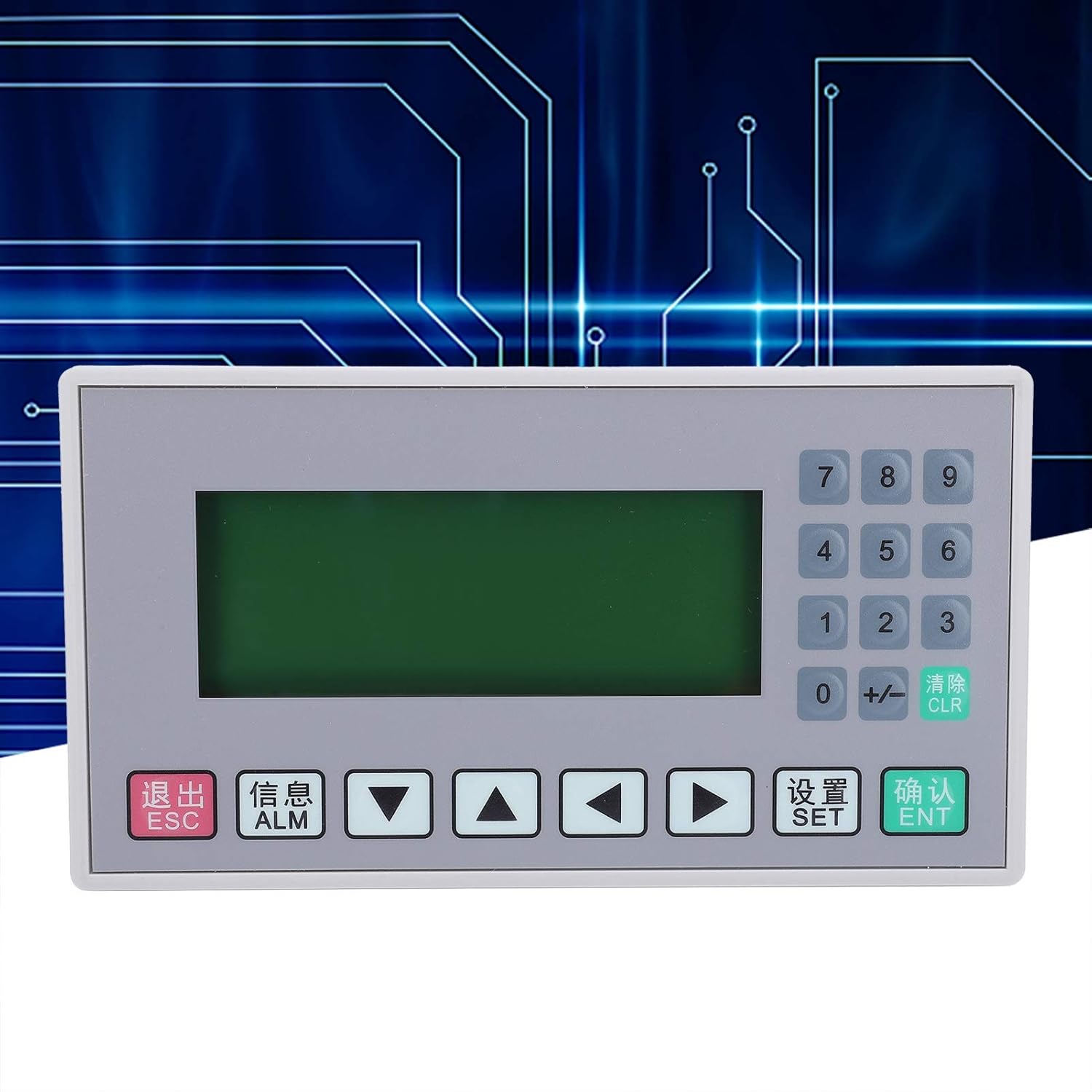

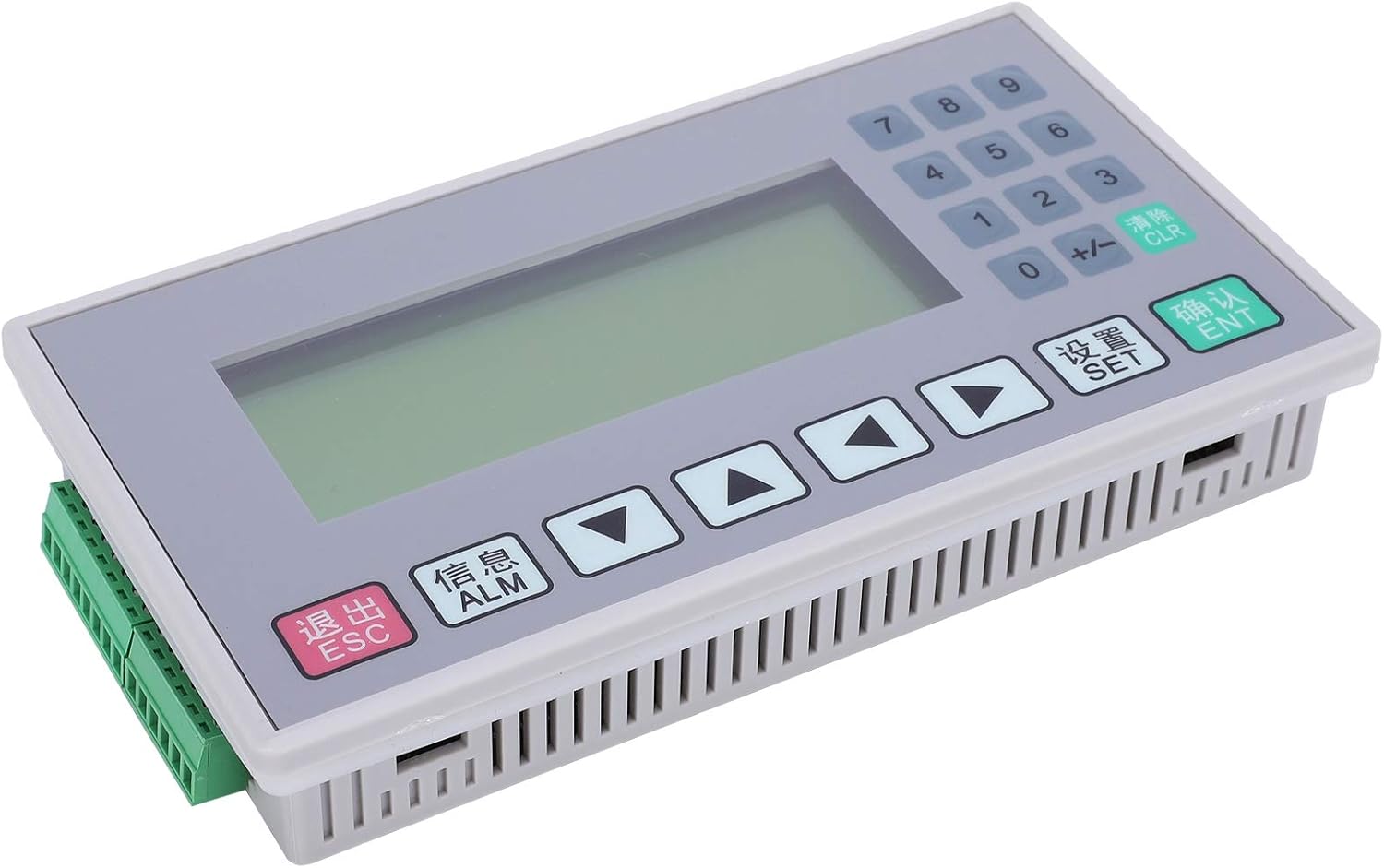

485 Text Display Controller ,PLC Industrial Control Board MS2N320-2AV-2UH FX2N Series Without Wire (Without Wire)
Product details
| Management number | 219183094 | Release Date | 2026/05/03 | List Price | $30.08 | Model Number | 219183094 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Item Type: PLC Industrial Control BoardScreen Type: Text displayDisplay Area: 4 lines x 12 Chinese charactersDisplay Brightness: 350CD/M2 brightnessInput: 6 channels (including 2 high-speed inputs) 60K (NPN)Output: 4 transistors (low-speed version) including 2 4K pulses (MT)AD: 2 wayDA: NoneExpansion Method: 485 (9pinA 8pinB)High-speed Pulse Input: 2 60KhzKernel: FX2NInput Voltage: DC18-27VScreen Resolution: 192×64 resolutionDisplay Model: OP320-5-ASerial Port: COM1-RS232 COM2-Display Text: Chinese/EnglishResistive Load: T type 1ASize of the hole openingSize: Approx. 29mm / 1.1in23mm / 0.9in83mm / 3.3in8mm / 0.3in161mm / 6.3in171mm / 6.7in92mm / 3.6in162mm / 6.4in84mm / 3.3inPackage List：1 x Industrial Control Board1 x Module4 x Mounting Screwsor1 x Industrial Control Board2 x Communication Line1 x Module4 x Mounting Screws
- The text display screen has a display area of 4 lines × 12 Chinese characters, 6 input channels and 4 output channels with transistor output. It supports 2 analog inputs and temperature measurement (occupying AD channels). Cutout dimensions are approx. 29mm / 1.1in, 23mm / 0.9in, 83mm / 3.3in, 8mm / 0.3in, 161mm / 6.3in, 171mm / 6.7in, 92mm / 3.6in, 162mm / 6.4in, 84mm / 3.3in
- MS320 text all‑in‑one series, with reverse connection protection, short circuit protection, protection, electronic resettable multiple protection, safe and reliable.Product supports RS232/ communication, optional clock function.
- Make pictures on the computer by editing software TP200CN, input Chinese characters freely and set PLC address, use serial communication to download the screen
- mainly used with various kinds of PLC (or intelligent controller with communication port),Widely used in the field of electronic control, compatible for Work2/.
- Monitor and modify the values and state of the internal registers or relays of the PLC in the form of text or indicator light so that the operator can control the equipment freely
| Model | BORDSTRACTo7hr8bsct9-11 |
|---|---|
| Brand Name | BORDSTRACT |
| Part Number | BORDSTRACTo7hr8bsct9-11 |
| Manufacturer | BORDSTRACT |
| Included Components | no |
