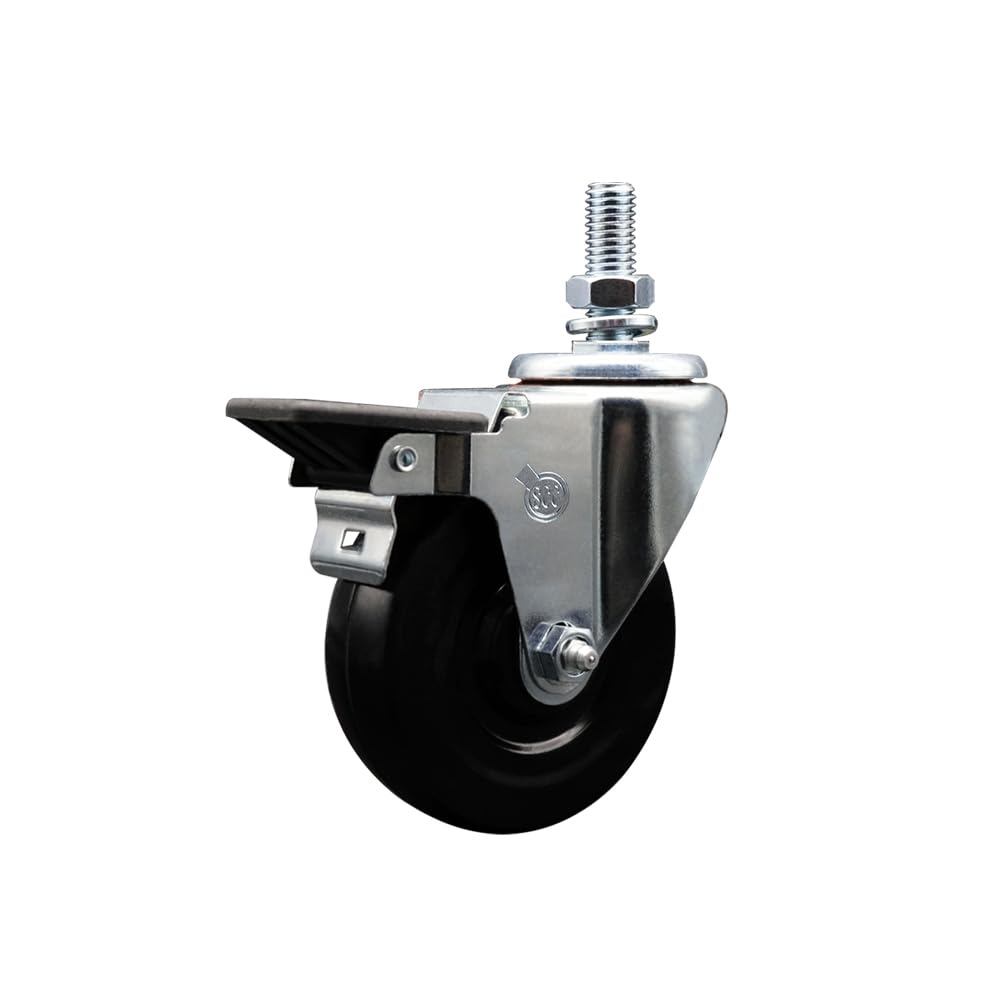

3" Swivel Caster with 10mm Threaded Stem, Hard Rubber Wheel and Brake - 275 lbs. Capacity - Service Caster Brand
Product details
| Management number | 218160096 | Release Date | 2026/05/03 | List Price | $9.40 | Model Number | 218160096 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- These Service Caster Series #20 Hard Rubber casters offer various wheel sizes and mounting heights: 3” Wheel: 4-1/8” mounting height; 3-1/2” wheel: 4-5/8” mounting height; 4” wheel: 5-1/8” mounting height; 5” wheel: 6-1/8” mounting height.
- Weight Capacity: 3": 275 lbs Capacity/Caster; 3.5": 285 lbs Capacity/Caster; 4" and 5": 300 lbs Capacity/Caster
- All casters feature a 10mm diameter (1.50 TPI x 1-1/2”) threaded stem. Threaded stems can be difficult to measure. Service Caster recommends having existing threads checked on a thread gauge to determine correct thread size before ordering. Don't see the size you need? No problem! Call us or message us by clicking the blue Service Caster Corporation hyperlink underneath the buy or add to cart button and then clicking the ask a question button.
- Brake options include a top lock brake (TLB) or a total lock brake (TTL). The top lock brake (TLB) places a positive locking force against the wheel tread locking the wheel only. The total lock brake (TTL) also places a positive locking force against the wheel tread, but the total lock brake (TTL) simultaneously locks the wheel and the swivel for a complete stationary position.
- Find other wheel materials, sizes and all Service Caster products at our Amazon Storefront. Click on the “by Service Caster” link above the main title on any Service Caster page listing.
| UPC | 670533909516 |
|---|---|
| Size | 3" Wheel |
| Color | Swivel - Top Lock Brake - Black |
| Rim Size | 3 Inches |
| Brand Name | Service Caster |
| Unit Count | 1.0 Count |
| Manufacturer | Service Caster |
| Model Number | Series #20 |
| Item Diameter | 3 Inches |
| Material Type | Hard Rubber |
| Exterior Finish | Bright Zinc Plated Finish |
| Pitch Circle Diameter | 1.5 Inches |
| Manufacturer Part Number | SCC-TS20S314-HRS-TLB-M1015 |
