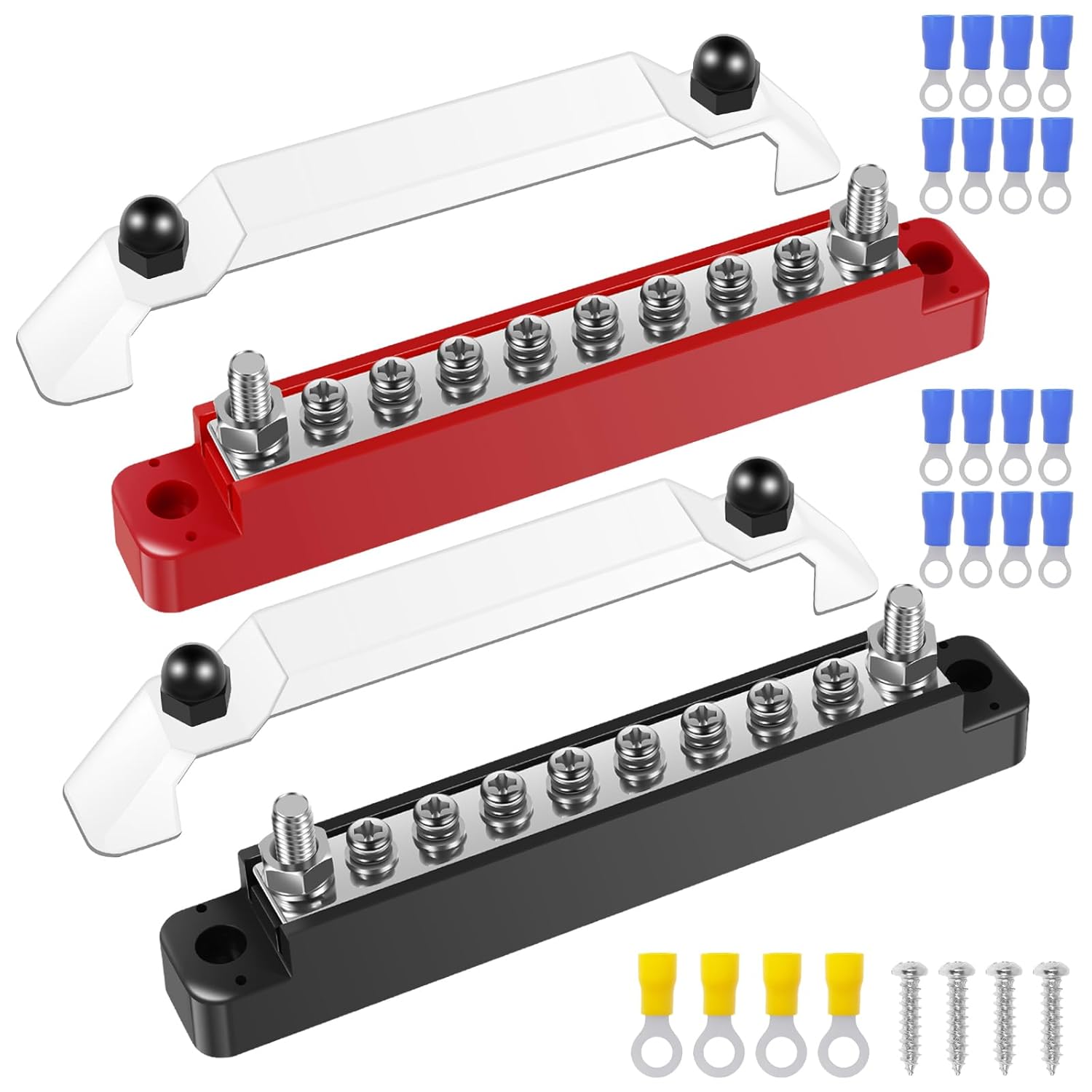

2Set 12V Bus Bar Stainless Steel Power Distribution Block Space Saving Marine Buss Bar High Security for Boat 2 x 1/4" Posts, 8 x M4 (#8) Screws Terminals (Black+Red)
$24.69
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by constructioncleanla.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$24.69
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by constructioncleanla.com
Free 30-day returns Details
Product details
| Management number | 218076608 | Release Date | 2026/05/03 | List Price | $9.88 | Model Number | 218076608 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- ⚡⚡⚡Premium Texture:Crafted for superior performance, our busbar features a nickel plated copper circuit board and 201 stainless steel terminals for excellent conductivity and corrosion resistance. The base is made of high-quality hard nylon with excellent insulation, heat resistance, and the PC protective cover ensures safety and durability, all the components work together
- ⚡⚡⚡Robust Construction & Design:Engineered for reliability, this 12V battery busbar includes 2 x M6 (1/4") heavy-duty terminals and 8 x M4 (#8) screw terminals. The critical conductive components utilize advanced materials to ensure anti-rust and anti-corrosion properties, providing a stable and long-lasting power connection point for your electrical systems.
- ⚡⚡⚡Efficiency & Safety:Simplify your wiring and enhance safety. This distribution block centralizes your power connection, reducing wire clutter and the risk of loose connections. The included secure PC cover prevents accidental short circuits, making your 12V-48V electrical system neater and significantly safer to operate.
- ⚡⚡⚡Product Parameters:Built to handle powerful demands, this block supports a maximum of 300V AC / 48V DC voltage and a continuous current of 130A AC / 150A DC.
- ⚡⚡⚡Wide Range of Applications: The blocks are constructed with copper plates and stainless steel terminals as conductors, with the characteristics of these two materials, the battery distribution blocks have the ability to work in extreme environments like high temperature, humidity, etc., and can be used in automotive, marine and other fields
| Gauge | 10.0 |
|---|---|
| Model | JUPP-73540 |
| Pitch | 0.24 Inches |
| Brand Name | JUNXILPPD |
| Unit Count | 2.0 Count |
| Item Weight | 0.52 Pounds |
| Part Number | JUPP-73541 |
| Manufacturer | JUNXILPPD |
| Mounting Type | Panel Mount |
| Connector Type | Auxiliary |
| Current Rating | 150 Amps |
| Number Of Poles | 2 |
| Centerline Length | 5.51 Inches |
| Specification Met | CE |
| Temperature Range | -4E+1 Degrees Celsius |
| Number Of Contacts | 10 |
| Included Components | 2 x Black Bus Bars 2 x Red Bus Bars 40 x Terminal Blocks 8 x Screws |
| Number of Positions | 4 |
| Item Dimensions W x H | 5.5"W x 1.65"H |
| Upper Temperature Rating | 150 Degrees Celsius |
