18.9X9.4 Inches Flexible RGBW LED Sheet 24V, RGB+Cool White 6500K Dimmable Cuttable Soft LED Backlight Sheet IP20, Undercounter Decorative Paper Thin Light 288 LEDs with Spacers (RGB+CW6500K)

RGBW LED sheets for backlighting, operates at 24V and emits RGBCW 6500K diammable light. SuperlightingLED colorful soft LED panel light can be used as a vibrant backlight to create an illuminated wall or glowing tabletop for a unique and elegant atmosphere. It can also be cut into letters, logos, emblems and artistic designs for creative lighting. Specifications: Light Color: RGB+6500K Cool White Sheet Size: 480mm(L)X240mm(W)X7mm(H) / 18.9”(L)X9.4”(W)X0.3”(H) LED Chip: SMD 5050 Lumen: 20-22LM per LED at Full Output, 6336LM Max per sheet LED Quantity: 288 LED Chips Input Voltage: DC24V Working Power: 70W per Sheet Current: 3A Cut Unit: 6 LEDs (L1.57" x W2.36") Beam Angle: 120 Degree Waterproof Rating: IP20 Lifespan: 50,000+hours Warranty: 2 Years Listing: 1 pc RGBW sheet dimmable (L18.9 x W9.4 x H0.3 inches) 2 pcs 150 mm long connecting wires 2 pcs 50 mm long connectors 8 pcs screws 8 pcs screw shims 8 pcs 8mm anti-collision silicone spacers Please note that power transformer and dimmer are not included. Usage and Instructions: 1.Measure the size of the board you want to paste LED backlight sheet on, and determine the size and quantity of LED sheets you need to purchase accordingly. 2.Connect LED sheet lights together by wire or connector 3.Choose right power supply and controller for LED panel sheet. Principle: The voltage of the power supply should be the same as the voltage of LED sheet. And the driver wattage should be 1.2 times the the total wattage of LED sheets. For example, when you need to power 4 pieces of 24V 28W LED lighting sheets, the voltage of power supply should the same, also 24V. And the total wattage of 4 pieces 28W LED sheets is 4pcs x 28W=112W. So the wattage of power supply will be 112W x 1.2=135W. (Or a little bit above) Recommend WB5 model to adjust brightness. 4.Connect power supply and controller to LED light sheet panel, turn them on and ready for use. Note: 1.Please operate the connection while the power is off. 2.Please make sure that the working environment is clean and dry. 3.Please kindly prepare a 24V power transformer in advance, as it is not included. 4.If you need to adjust brightness and color of this RGBW backlight LED panel, a dimmer is necessary.

• 【Important Note】To operate this RGBW LED Sheet, you will need a separate 24V power supply and an RGBW LED controller (both sold separately and not included). The package contains only 1 PC RGBW LED sheet and related accessories.
• 【Dimmable 4-in-1 RGB+6500K Cool White Light】This dimmable LED sheet light measures 9.5"x 19" (240mm*480mm) and adopts an RGBW 6500K cool white design. Four color channels integrate into 5050SMD beads, providing more natural color mixing and purer white light with 90+ CRI. 6500K daylight white light offers a bright and refreshing atmosphere, ideal for work or task areas.

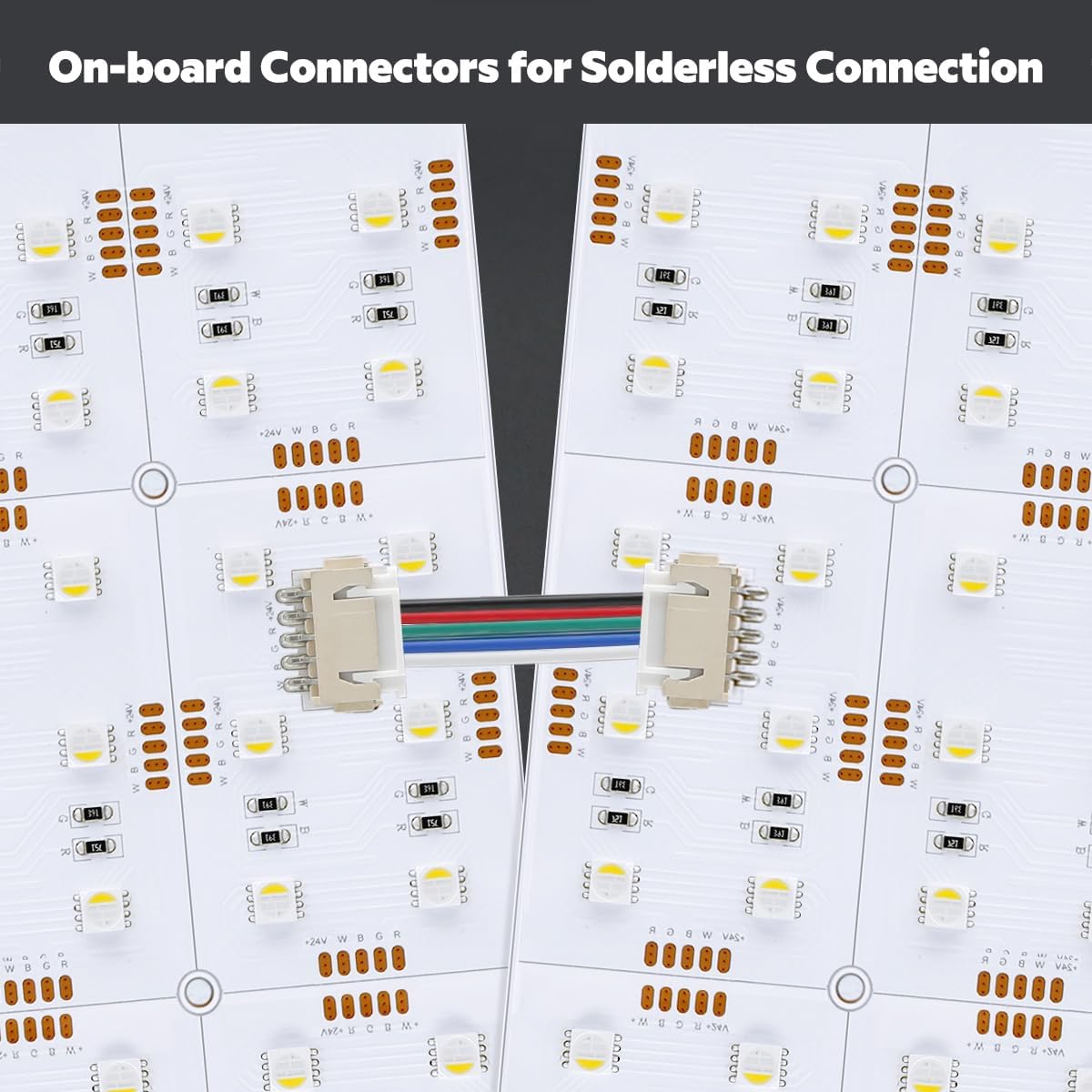

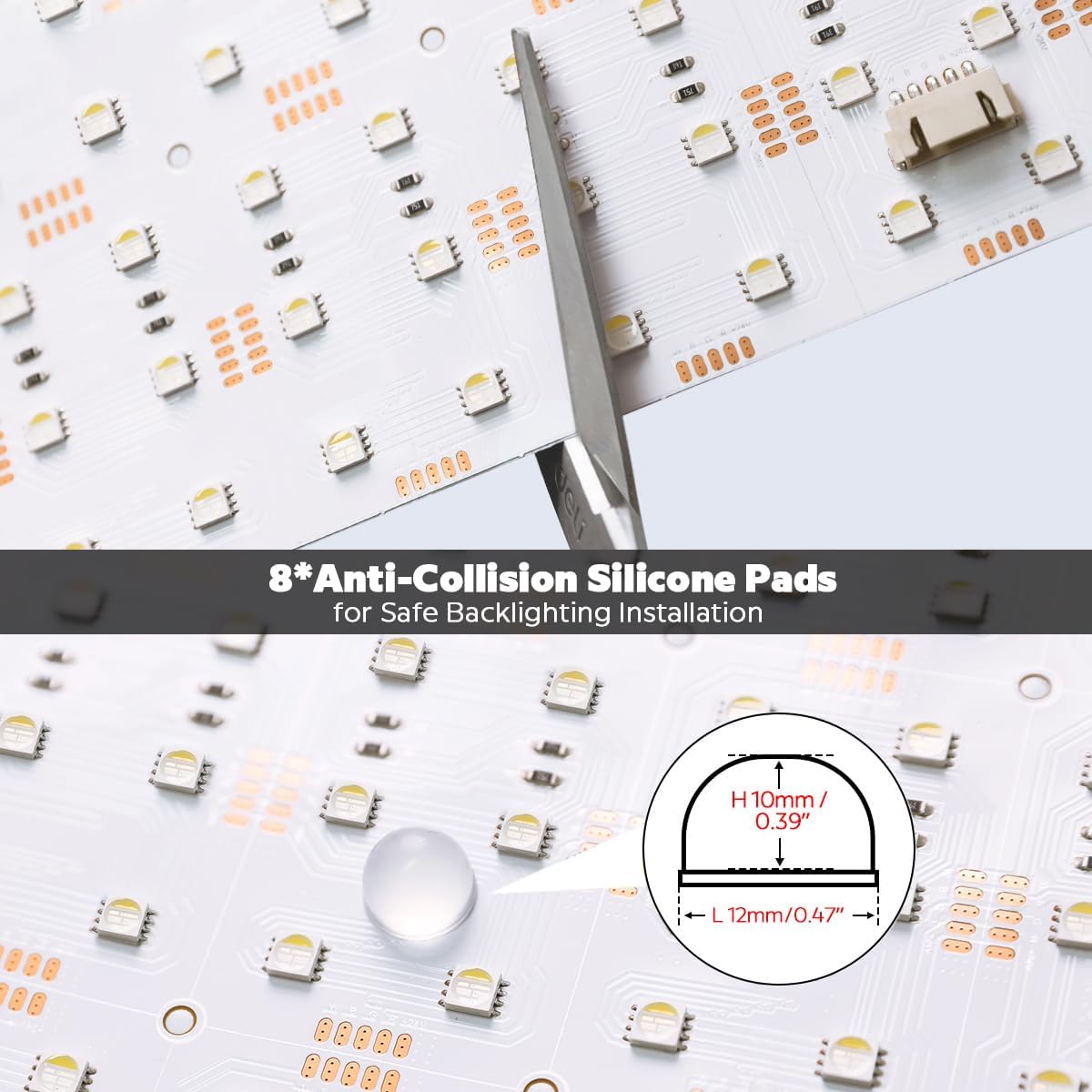

• 【Effortless Connection, Accessory Pack】Equipped with 8 fixed onboard connectors, our 24V LED sheets support seamless splicing, perfect for larger area backlighting. 5 sheets connectable without noticeable voltage drop. Each LED panel light comes with a free accessory kit, including LED light sheet connectors, power connectors, anti-impact silicone spacers, screws, and screw shims.
• 【Thin As Paper, Lightweight, Flexible】RGB+W LED sheet is ultra-thin like paper, lightweight, and flexible, with a total thickness of just 7mm/0.3in (including the height of onboard connectors). Slim LED backlight display panel does not take up space and can be easily bent to fit curved surfaces and corners, perfect for a variety of narrow or irregular installation environments like furniture, advertising light boxes, and display cabinets.
• 【48 Cutting Modules, Each Module Allows Cutting of 6 LEDs】This flexible LED screen sheet features 48 cutting modules in a 12x4 layout, totaling 288 LEDs, delivering non-flickering, uniform, and bright light with a maximum output of 6336 lumens. Each module allows the cutting of 6 LEDs (cutting unit: 1.57"x2.36"/ 40x60mm). Black guidelines on the surface ensure precise and safe cuts, preventing damage to the LED panel sheet.
• 【Adhesive Backing, Wide Applications】Sheet LED comes with a strong adhesive backing. Screw holes are designed for long-lasting installation. The LED color changing lights sheet can be used for onyx and marble backlit design, suitable for installation on walls, countertops, and retail store product displays. It can also be cut and put into a lightbox for sign lighting. Please note that this backlighting LED sheet does not include a 24V power supply and dimmer.
