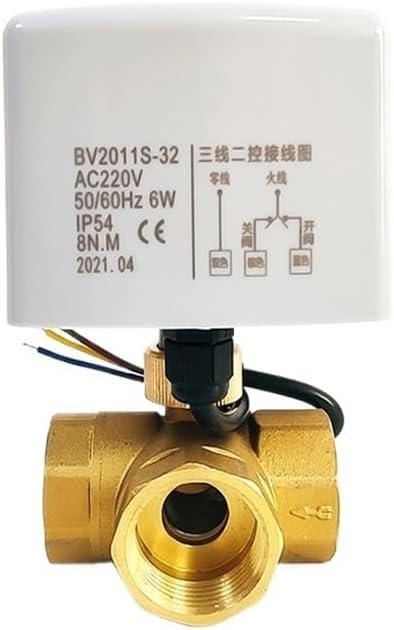

1/2" 3/4" 1" 1-1/4" 1-1/2" Brass Electric Ball Valve Three Wire System Two Control Three Way AC220V DC24V DC12V(1-1/4",12VDC)

Product description:The electric ball valve is composed of a valve body and a driver. It has the advantages of simple structure, reliable work, strong fluid passing capacity and energy saving. It can be widely used in heating, central air-conditioning, solar hot water system, water treatment system cold and hot water switch control.SpecificationApplicable medium: cold, hot water or 50% glycol solutionmaterial: BrassControl method: Three wire two controlStructure Forms: Three wayDriving voltage: AC220V AC24V DC24V DC12VPower: 6W (Only when the valve is opened and closed)Play time: 5-15 secondsDrive torque: 8 N.MNominal pressure: 1.6MPaApplicable medium temperature: 0-95Applicable ambient temperature: 0-65Connection method: G internal threadActuator Mode : Without Manual And InstructionStructure : BallPort Size : 1/2" 3/4" 1" 1-1/4" 1-1/2"Media : WaterMaterial : BRASSTemperature of Media : Normal TemperatureStandard or Nonstandard : StandardPressure : Low PressurePower Source : AC

• 1. Precise and flexible flow control to optimize system efficiency.
• 2. Reliable truncation and leakage prevention, excellent sealing performance.
• 3. Effectively adjust and stabilize the pressure to ensure stable operation of the equipment.
• 4. Easy separation and confluence, easy operation and easy maintenance.
