119X-7679X 2 Million Pixel Coaxial Photoelectron Microscope Infinitely Far Objective Can Take Photos and Video Measurements

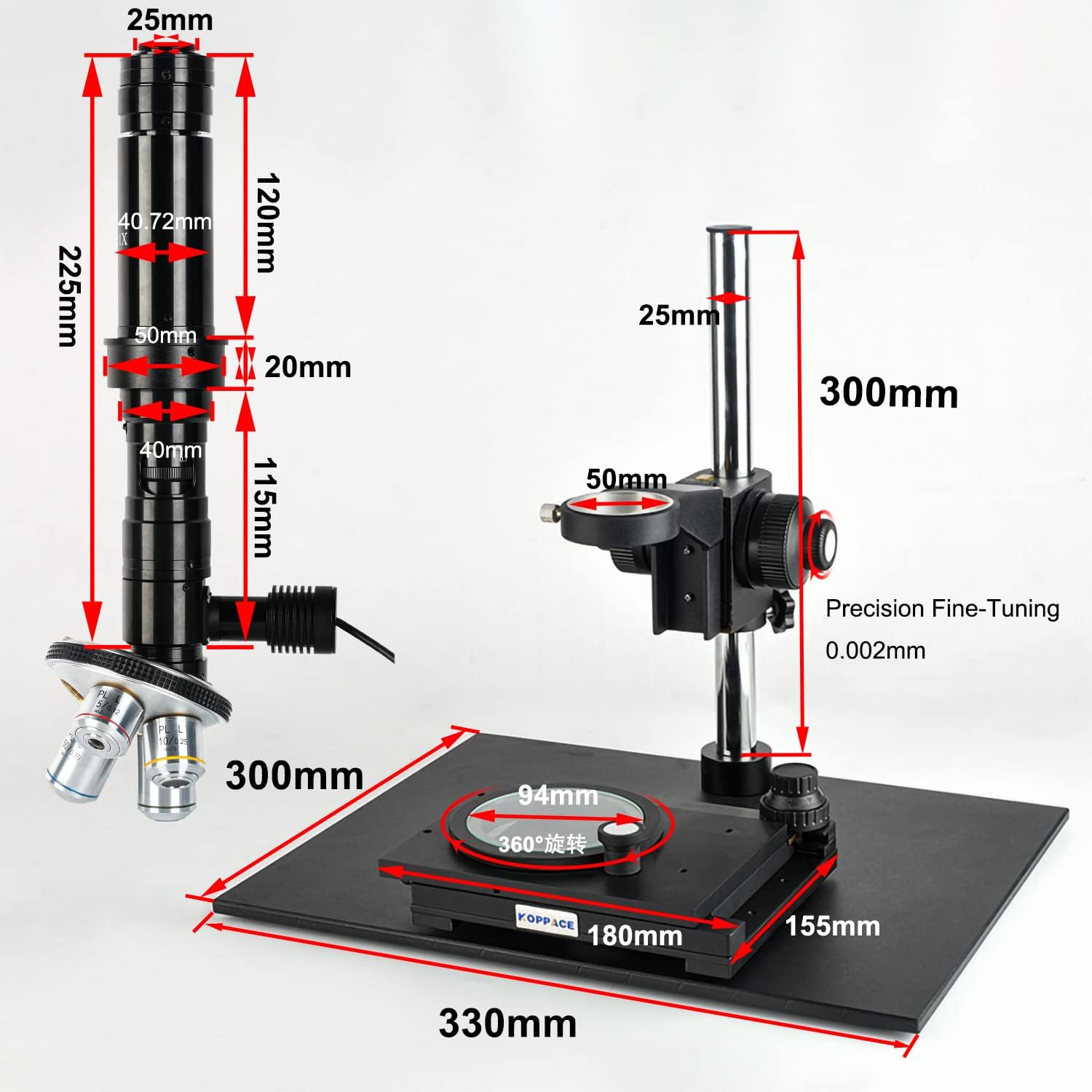

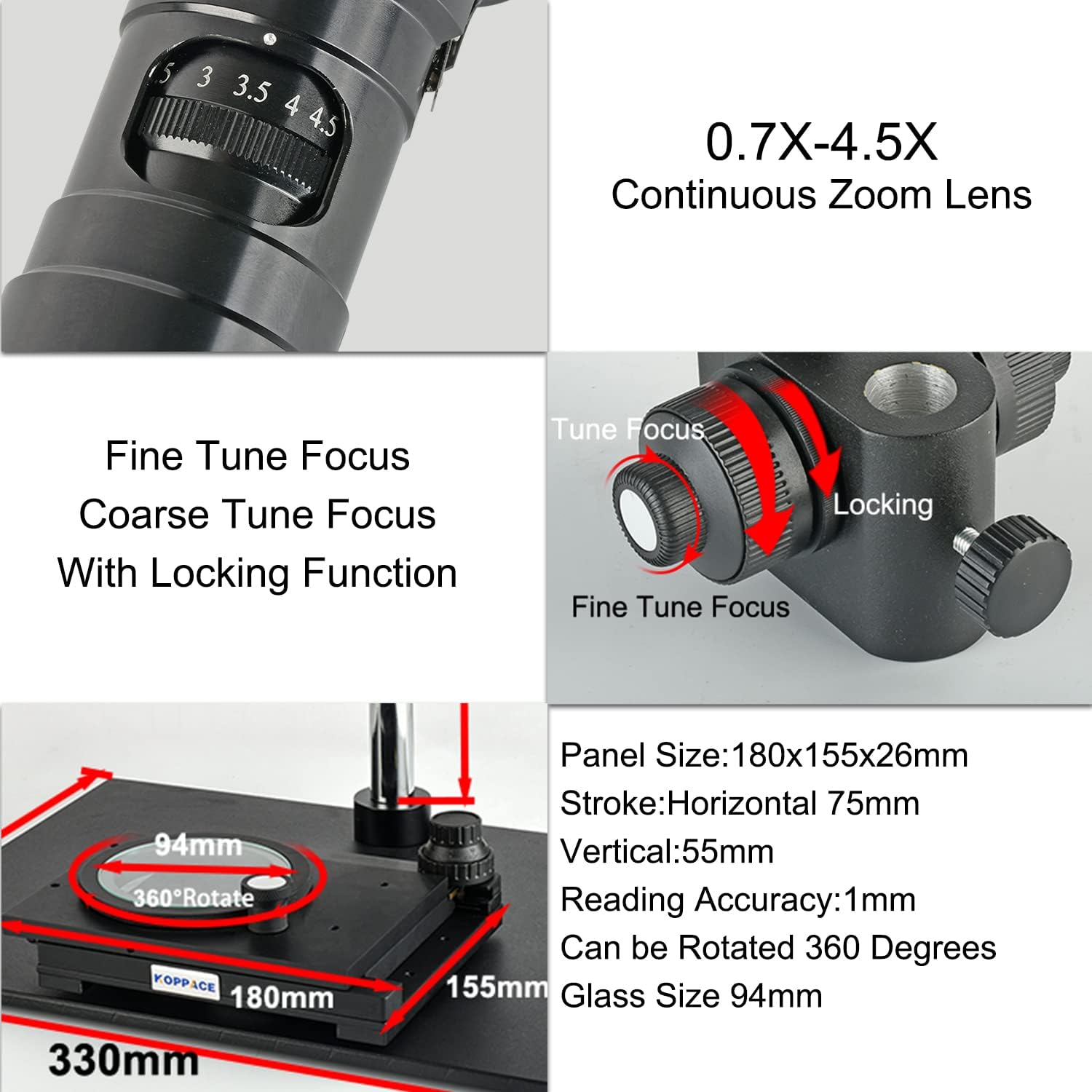

Model：KP-Z6002 Magnification：119X-7679X Eyepiece：1X Objective Lens：0.7X-4.5X Continuous Adjustable Converter：Five-Hole Converter Point Light：DC 5V 8W LED White Light Working Temperature 0-60℃ Lifetime:50000 Hours Length：290mm Lens Mounting Diameter：50mm Working Stroke：65mm Column Height：300mm Column Diameter：25mm Center Distance：165mm Precision Fine-Tuning：0.002mm Base Size：330mmx300mmx10mm Mobile Platform：Panel Size:180x155x26mm Stroke:Horizontal 75mm Vertical:55mm Reading Accuracy:1mm,Can be Rotated 360 Degrees,Glass Size 94mm Auxiliary Objective：PL L5X/0.12 PL L10X/0.25 PL L20X/0.40 PL L50X/0.70 Working Stroke：26.1 mm 20.2 mm 8.80 mm 3.68 mm Optical Magnification：1.75X-11.25X 3.5X-22.5X 7X-45X 17.5X-112.5X Field of View （CCD 1/1.8"）：0.71mm-4.57mm 0.35mm-2.28mm 0.17mm-1.14mm 0.07mm-0.45mm Electronic Magnification：119X-768X 238X-1535X 477X-3071X 1194X-7679X Pixel：2 Million Pixels Image Sensor：1/2＂CMOS Resolution：1920×1080 Pixel Size：3.75×3.75um Frame Rate：60FPS Color Adjustment：R、G、B Independently Adjustable White Balance Regulation：Single Automatic White Balance Exposure to Adjust：Manual/Automatic Reflective Elimination：Manually Contrast Adjustment：Manually Output Method：HDMI Storage Mode：U Disk. Can Take Pictures,Video,Measurement Crosshair Function：100 Groups Packing List 1、Coaxial Optical Lens *1 2、Point Light Source *1 3、Power Adapter *1 4、Pillar *1 5、Base Plate *1 6、Anti-Skid Ring *1 7、Fine Tuning Bracket *1 8、XY Mobile Platform *1 9、2 Million Pixel Digital Camera *1 10、HDMI HD Line *1 11、Camera Power Adapter *1 12、Measuring Calibration Ruler *1 13、Infinitely Far Objective PL L5X *1 14、Infinitely Far Objective PL L10X *1 15、Infinitely Far Objective PL L20X *1 16、Infinitely Far Objective PL L50X *1 17、Five-Hole Converter *1

• 1920*1080 frame rate can reach 60 fps, no drag delay;
• Supporting U-disk photo-taking function, compatible with 4G-32G brand U-disk/SD cards;
• Accurate measurement function, supporting line, circle, angle, rectangle and other measurements;
• Powerful OSD menu and convenient mouse operation, just like computer operation.
• Supporting screen mouse dragging function, setting crosslines and measuring operation is very convenient.
• With 100 sets of marking lines, the position can be moved, and the color and display can be set.
• This Product is an HDMI HD Output and Can only be Connected to a Display With an HD Connector.The Product Has Two USB Outputs,one For Connecting a Mouse and One for Connecting to a USB Flash Drive.Measurements Can be Performed Directly on the Display With the Mouse.Save Pictures and Excel Data.
• This Product Does Not Contain a Monitor.
